Description

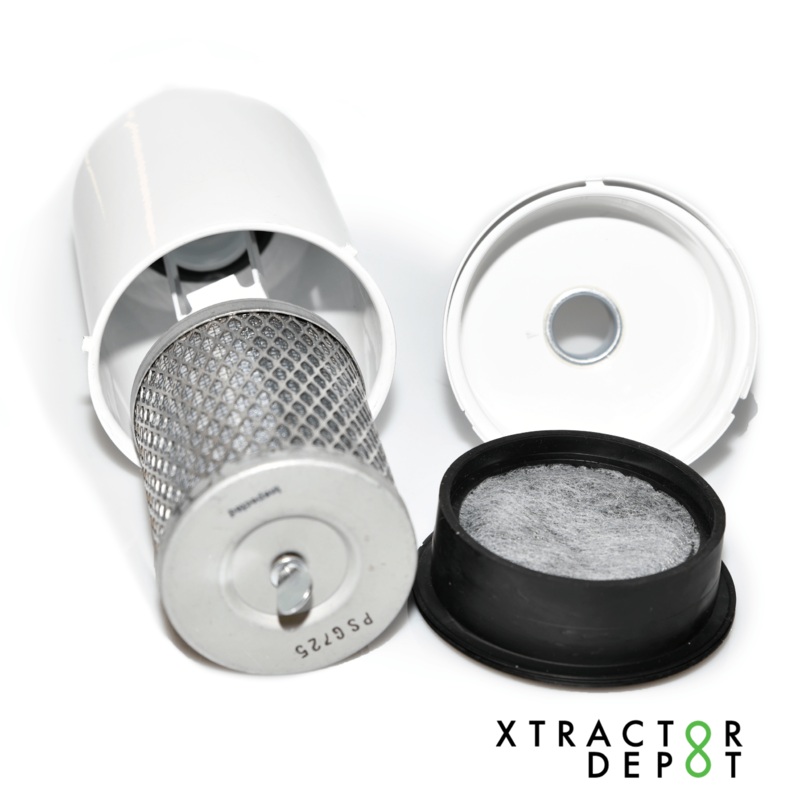

Replacement Odor Adsorbent Element for Solberg DSV
The Solberg DSV product series is an extremely effective vacuum pump discharge filter that offers 2 stages of filtration to remove both oil mist and undesirable odors from the pumps exhaust. The DSV is constructed of a robust epoxy coated steel and offers a compact, straight through design, with an integrated drain port to easily evacuate any collected contaminants. This innovative 2 stage design starts with a proprietary coalescing media that cleans the discharge air by capturing and coalescing oil mist. The oil-free air is then directed through an adsorptive activated carbon cartridge to remove any residual vapors and odors. The DSV was designed to be easily disassembled and serviced without the use of tools, allowing for extremely fast filter change out and minimal downtime.
Benefits:
Oil mist elimination
Odor adsorption
Reduce overall maintenance costs
Contamination removal
Features:
Primary filter captures and coalesces oil entrained in air stream
Activated carbon element removes offensive odors generated by the process
Robust design
Easy serviceability
Convenient access drain port
Options:
Clamp, centering ring, and o-ring kit available
Drain kits available upon request
Technical Specifications:
0.3 micron media; 99.97% efficiency
Continuous operating temp: 32F (0C) to 113F (45C)
20 m3/hour flow rating
Maximum back pressure 12 psig (1.8 bar absolute, 1.8 x 105 Pa)
NW25 connection
DATASHEET:
