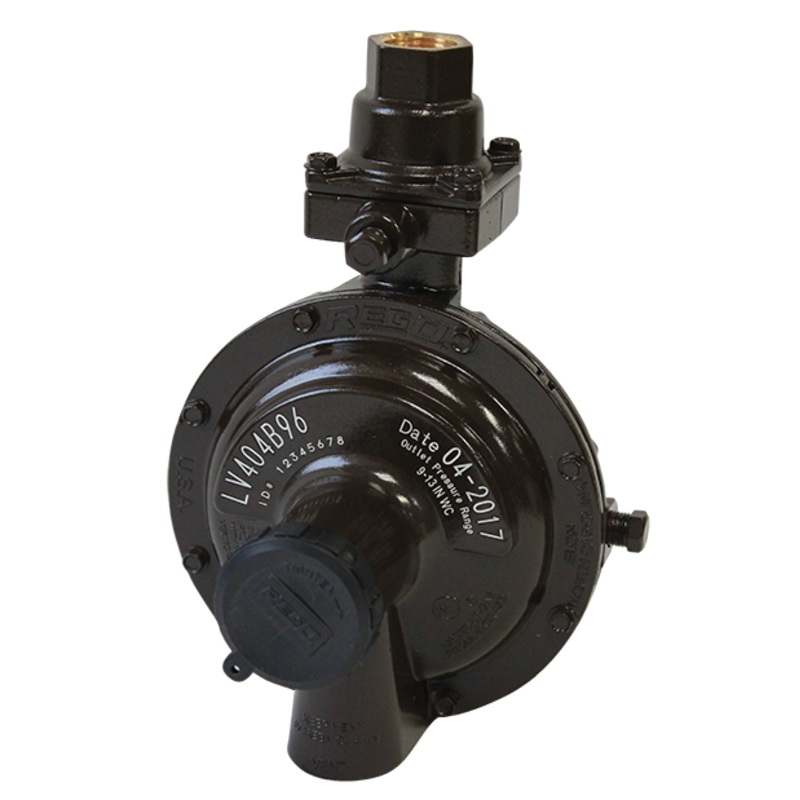

Rego LV404B4 and LV404B9 Series Compact Twin Stage Regulators

Description

BULK ORDERS AND LESS-COMMON PRODUCTS MAY REQUIREADDITIONAL TIME FOR SHIPMENT.CONTACT USVIA PHONE OREMAILTO REQUEST MORE INFORMATION ON AVAILABILITY AND OTHER PRODUCT OPTIONS.

This compact two-stage regulator is designed to reduce container pressure down to 11 w.c. delivery pressure. It is ideal for on-site cylinder applications, mobile homes and average domestic service including small ASME and 100 to 420 pound DOT cylinders.

Features:

• Incorporates integral relief valve.
• With 15 PSIG inlet pressure, regulator is designed to not pass more than 2 PSIG with the seat disc removed.
• Large vent helps prevent blockage and has F. NPT for vent piping.
• Compact size allows for easy installation especially under container hoods and within collars.
• Vent on the first stage is consistently in the down position.
• Built in pressure taps on both first and second stage regulators have plugged F.NPT outlets. Plugs can be removed with a 316 hex allen wrench.
• Select brown finish

Part Numbers:

Part Number Orifice Size Factory Delivery Pressure Adjustment Range 2nd Stage Vapor Capacity BTU/hr Propane* All Models 3/16 11 w.c. at 100 PSIG Inlet 9 – 13 w.c. 525,000

Maximum flow is based on 25 PSIG inlet pressure and 9 w.c. delivery pressure

Part Number Inlet Connection Outlet Connection Bonnet Vent Position 1st Stage Bonnet Vent Position 2nd Stage LV404B4 F. NPT F. NPT Down Over Outlet LV404B4V9 F. NPT F. NPT 9 oclock 9 oclock LV404B46 F. NPT F. NPT Down Over Outlet LV404B46V9 F. NPT F. NPT 9 oclock 9 oclock LV404B9 F. POL F. NPT Down Over Outlet LV404B9V9 F. POL F. NPT 9 oclock 9 oclock LV404B96 F. POL F. NPT Down Over Outlet LV404B96V9 F. POL F. NPT 9 oclock 9 oclock
