Description

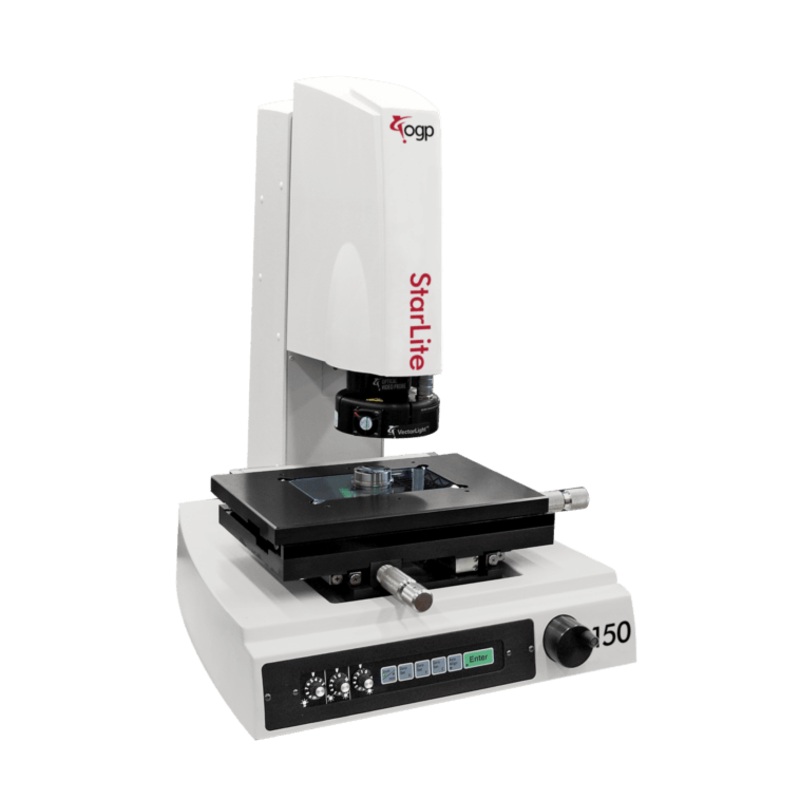

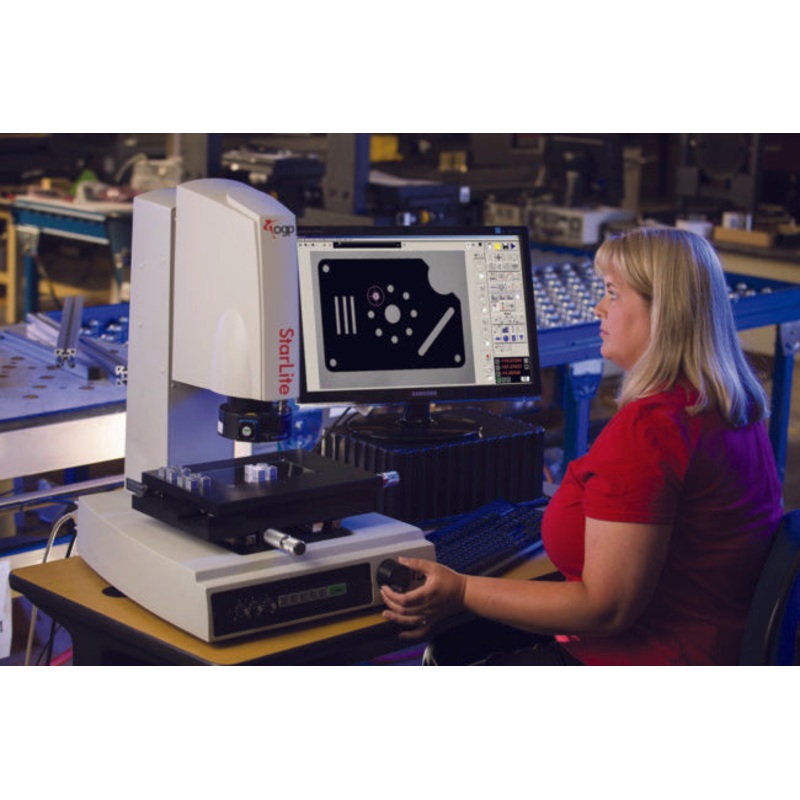

A COMPACT, SELF-CONTAINED AND PROGRAMMABLE SEMI-AUTOMATIC VIDEO MEASUREMENT SYSTEM
StarLite systems are programmable semi-automatic video measurement systems. A motorized 6.5:1 zoom lens and motorized Z axis make StarLite systems far more capable than what is typically considered a manual system. The zoom lens provides optimum magnification, and coupled with the motorized Z axis, StarLite systems are capable of accurate auto-focus measurements. Edge detection tools minimize operator influence on the measurements.
Measure-X metrology software provides powerful programming capability with an easy-to-use operator interface. Semi-automatic programs can be created, guiding the operator from one automatic measurement to the next. StarLite systems are simple and rugged enough to stand up as everyday measurement tools, providing exceptional measurement capability at a value price.
Standard
Optional
XYZ Travel
150 x 75 x 125 mm
XYZ Scale Resolution
1.0 m
Drive System
Manual with coarse and fine X, Y, Z position adjustment knobs
Worktable
Anodized, with fixture holes, removable stage glass, 7 kg recommended max payload
Optics*
Motorized zoom; 1.0x lens
Lens attachments for 1.0x Lens: 0.5x, 0.75x, 1.5x, 2.0x
Illumination
Substage LED profile, coaxial LED surface, VectorLight LED ring light
Metrology Camera
Megapixel color digital metrology camera
Field of View**
7.3 mm x 5.5 mm (low zoom) to 0.5 mm x 0.4 mm (high zoom)
14.6 mm x 11.0 mm (1.0x lens, 0.5x attachment) to 0.27 mm x
0.20 mm (1.0x lens, 2.0x attachment)
Working Distance
62 mm
Up to 133 mm (1.0x lens, 0.5x attachment)
Software
Measure-X Measure and Compare
Measure-X Analyze, Measure-X Offline, EVOLVE SPC
System Controller
Windows based, with up-to-date processor and onboard networking/communication ports
Controller Options
24 flat panel LCD monitor, or dual 24 flat panel LCD monitors,
keyboard, 3-button mouse (or user supplied)
Accessories
Foot Switch
Power Requirements
100-120 VAC or 200-240 VAC, 50/60 Hz, 1 phase, 350 W
Safe Operating Environment
15-30 C, non-condensing
Rated Environment
Temperature 18-22 C, stable to 1 C, max rate of change 1 C / hour, max vertical gradient of 1 C / meter; 30-80% humidity; vibration
<0.001g below 15 Hz
XY Area Accuracy
E2 = (4.5 + 8L/1000) m
Z Linear Accuracy
E1 = (7.0 + 8L/1000) m
