Description

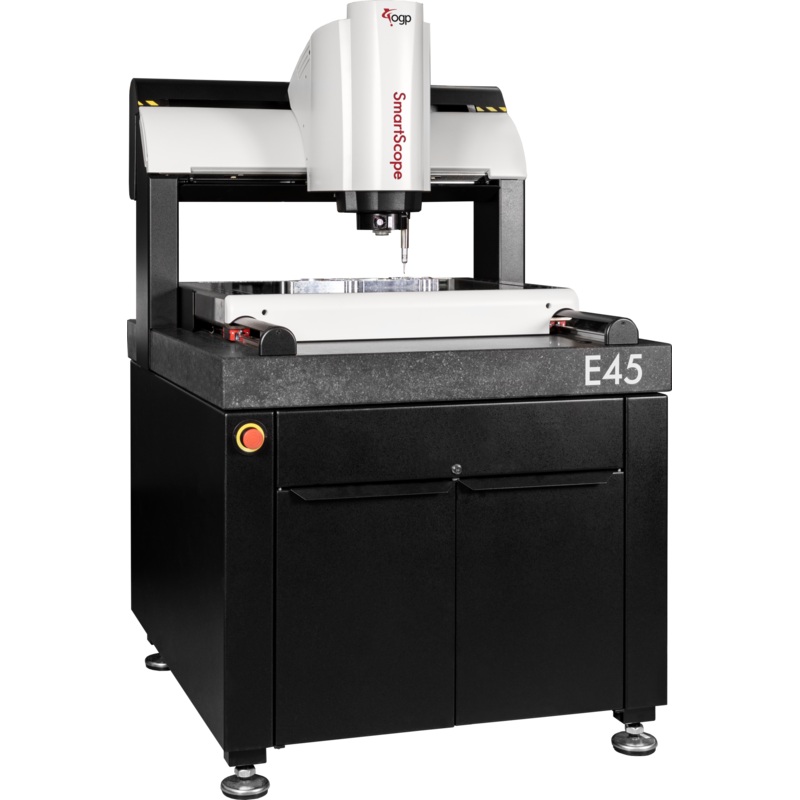

OGP SmartScope E45 is a floor model fully automatic 3-axis video metrology system featuring a large travel fixed bridge design. The fixed lens IntelliCentric-E optical system and Virtual Zoom provide a high-resolution image engineered for video edge detection metrology. SmartScope E45 also offers:
OGP E45 PDF Brochure
SmartScope E45 also offers:
Powerful Measure-X Metrology Software from creating part measurement routines to operating an OGP system in a production work environment, Measure-X metrology software offers power without intimidation. Measure-X features a full set of image processing and autofocus tools, geometric functions, ANSI/ISO tolerances, easy editing, and contour fitting analysis. Measure-X is the ideal choice for general-purpose video and multisensor metrology.

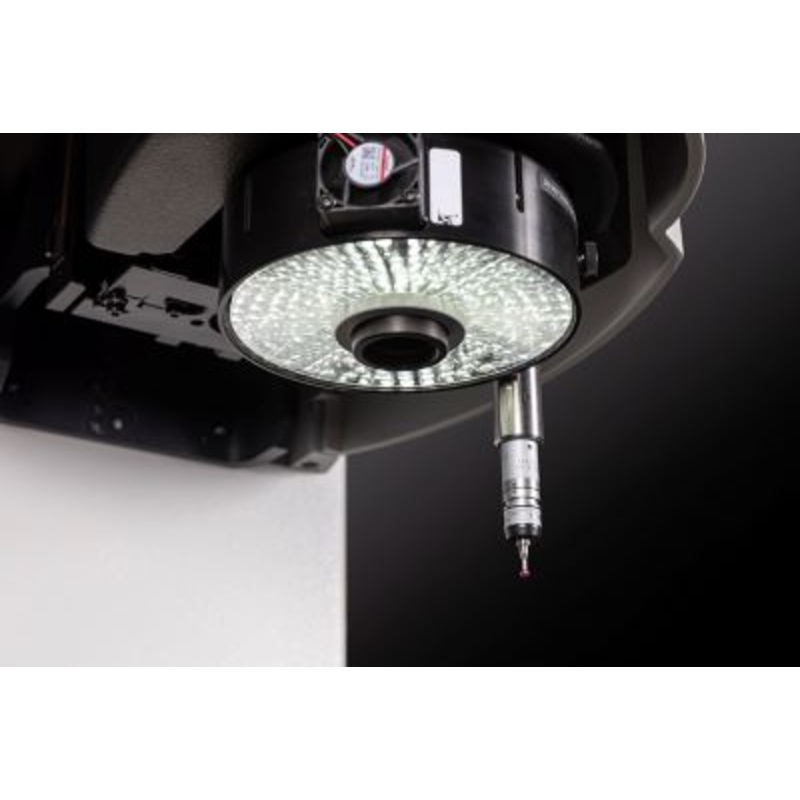

Advanced Lighting All LED coaxial, substage profile, and SmartRing light illumination comes stand.
Sturdy, Stable Construction A heavy-duty cast base and integral compound stage with Y-axis center drive provides stability.
Multisensor Versatility Optional touch probe provides multisensor coverage.
TouchProbe PDF Brochure
Rotary Indexers are programmable angular positioning devices that allow automatic indexing of parts in both manual and automated measurement routines.
Rotary Indexer PDF Brochure
Standard
Optional
XYZ Travel
500 x 450 x 200 mm
Extended Y axis, 610 mm; extended Z axis, 300 mm
XYZ Scale Resolution
0.1 m
Drive System
DC servo with 3-axis control (X, Y, Z); with 3-axis joystick controller
Multifunction handheld controller (in lieu of joystick)
Worktable
Nickel plated steel, with fixture holes, removable stage glass, 65 kg recommended max payload
Rotary Axis
Miniature Servo Rotary (MSR)
Optics*
Fixed optical magnification with Virtual Zoom, E 8.10 standard lens
Replacement Lenses: E 16.20 Wide Field-of-View/Long Working Distance, E 4.5 High Magnification
Illumination
Substage LED profile, coaxial LED surface, SmartRing LED ring light
Conical SmartRing (included with E 4.5 lens)
Metrology Camera
6 megapixel color digital metrology camera
Field of View
7.0 mm x 5.1 mm
E 16.20: 14.0 mm x 10.4 mm
E 4.5: 3.5 mm x 2.6 mm
Minimum Feature Size**
10 m
E 16.20: 20 m
E 4.5: 5 m
Working Distance
62 mm
E 16.20: 110 mm
E 4.5: 31 mm
Sensor Options
Tactile: TP20 or TP200 Touch Probe
Software
Measure-X Measure and Compare
Productivity software: Measure-X Analyze, EVOLVE Suite (Design, Manufacturing, SmartProfile, SPC)
Offline software: Measure-X
System Controller
Windows based, with up-to-date processor and onboard networking/communication ports
Controller Options
24 flat panel LCD monitor, or dual 24 flat panel LCD monitors, keyboard, 3-button mouse (or user supplied)
Power Requirements
100-120 VAC or 200-240 VAC, 50/60 Hz, 1 phase, 700 W
Safe Operating Environment
15-30 C, non-condensing
Rated Environment
Temperature 18-22 C, stable to 1 C, max rate of change 1 C / hour, max vertical gradient of 1 C / meter; 30-80% humidity; vibration
<0.001g below 15 Hz
XY Area Accuracy
E2 = (2.8 + 5L/1000)
Z Linear Accuracy
E1 = (3.8 + 5L/1000) m
E1 = (2.8 + 5L/1000) m (requires optional E 4.5 lens)
