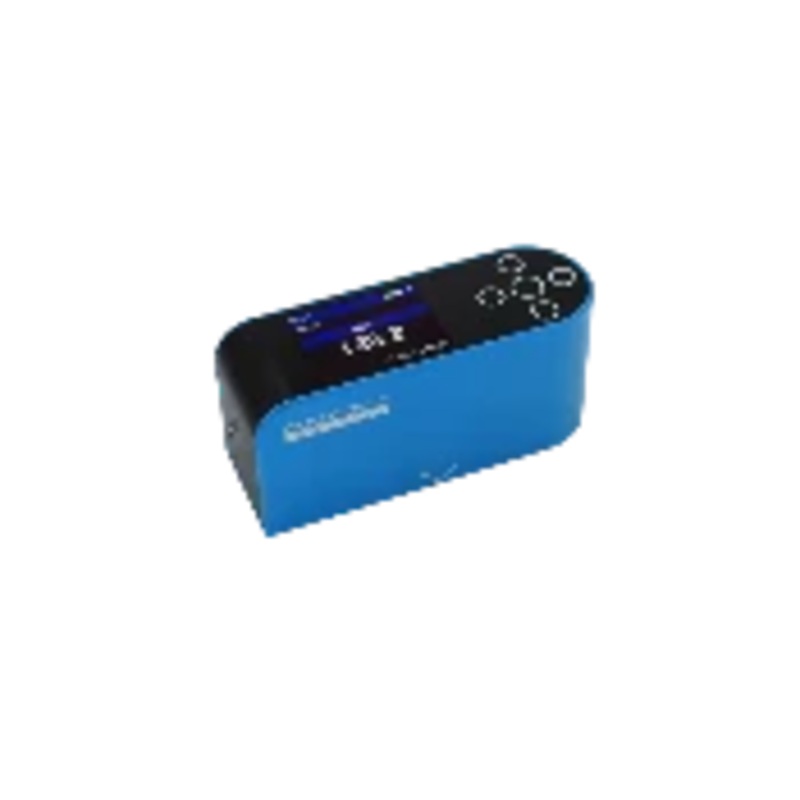

Novo-Gloss 45 Glossmeter

Description

Novo-Gloss 45 Glossmeter

The Novo-Gloss 45 gloss meter is suitable for measuring gloss of ceramics, metal manufacturing and plastic films.

Glossmeter features:

• Ultra-fast measurement time
• Time and date stamped results
• Measurement results in GU or in % reflectivity
• Automatic tile detection for faster calibration
• Full on-board statistics
• Graphical trend analysis of results for simple reporting.
• Easy Batching User definable batch size and names for more efficient measurement of multiple samples
• Software-free data transfer of measurements and batches
• Direct data input via Bluetooth transmit each measured reading directly into Microsoft Excel or other programs
• Pass / Fail for easy identification of non-conformances
• Auto-ranging, suitable for measuring matt to mirror finishes
• Compliant to major international standards such as ASTM C346
• Calibrate to any standard (from low gloss to mirror finish)
• UKAS certification included

Instrument Information Battery Type Rechargeable lithium ion Operation Time 17+ hours Readings per Charge 20,000+ Memory 8MB, 2,000 readings Operating Temperature 15C – 40C (60F – 104F) Operating Humidty Up to 85% (non condensing) Commodity Code 9027 5000

Dimension & Weights Dimensions 65mm (H) x 140mm (W) x 50mm (D) Instrument Weight 390g Packed Weight 1.6kg Packed Dimensions 110mm (H) x 280mm (W) x 220mm (D)

45 Gloss Range 0 – 60 GU 60 – 1000 GU Repeatability 0.2 GU 0.2% Reproducibility 0.5 GU 0.5% * Resolution 0.1 GU Measurement Area 8mm x 12mm ellipse Standards ASTM D2457|ASTM C346
