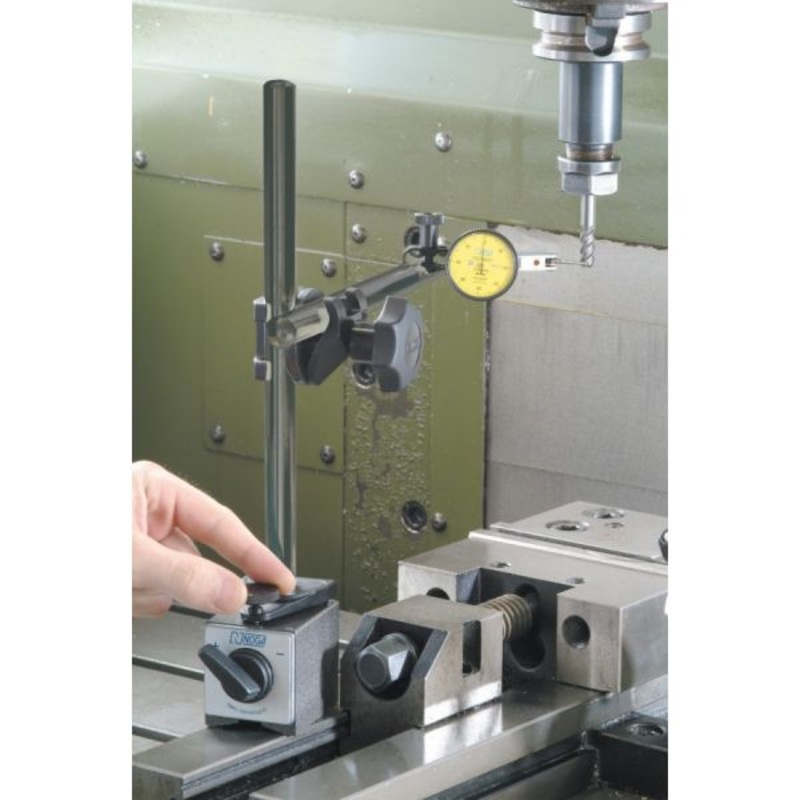

Mini PH Holder – PH4016

Improved single direction Fine adjustment at base.
– Powerful on/off magnetic base.
– Universal Swivel Clamp for all dial and test indicators.
– Strong arm lock by using the unique 3-point system.
– Easy to set up gauges into required position

• Clamp Holds: 6mm, 8mm,3/8″and dovetail
• Weight: 2.4 Kg
• Post Length and diameter: 16mm x 260mm
• Arm length and diamter: 16mm x 255mm
• Magnet Force: 1000 N
• Magnet Width: 50mm
• Magnet Length: 70mm
• Magnet Height: 55mm
• order no. for 3 points clamp: PH4016
• order no. for universal swivel clamp: FA1210
