Description
CSA/ANSI Z21.80:19/CSA 6.22:19 APPROVED
USE THE TECHNICAL LITERATURE BELOW TO DETERMINE THE SPECIFICATIONS YOU REQUIRE.
High Quantities and less-common products may take additional time shipment. Contact us via phone or Email to request more information on availability.
FOR AVAILABILITY OF MORE OPTIONS, PLEASE CONTACTUS FOR INFORMATION

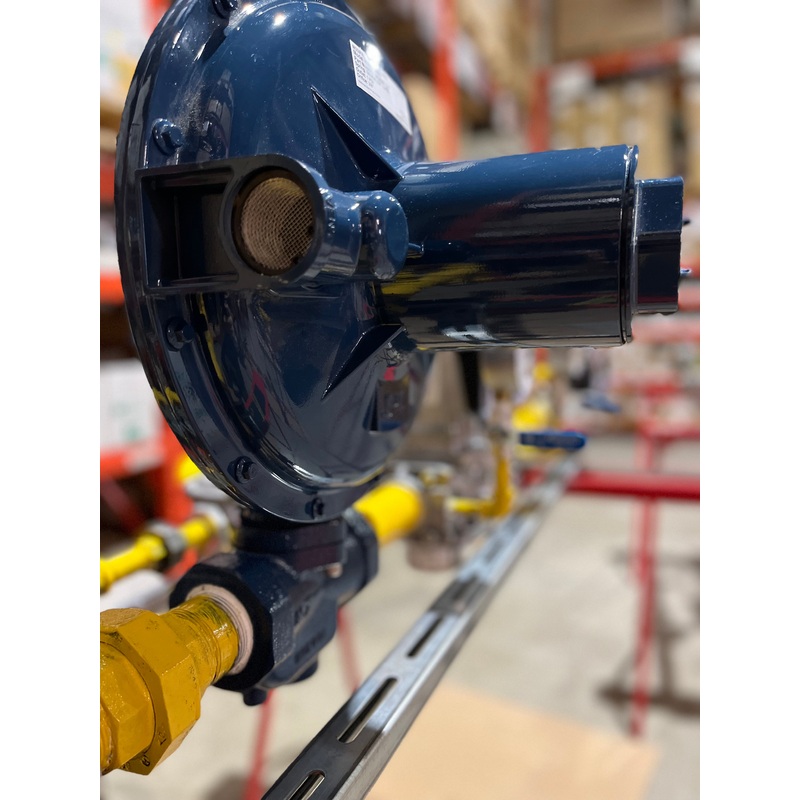

The NGR06 series spring-loaded gas regulators with internal relief provide consistent and controlled pressure in a variety of residential, industrial, and commercial applications. The NGR06 meets ANSI Z21.80 for Class I, Class II, Vent Limiting, and OPD (Overpressure Protection Device) applications and is designed to be used in many applications where non-corrosive dry gases are used.
Features:
- ANSI Z21.80 certified
- Vent Limiter Option
- Internal Relief – OPD
- Outlet pressures up to 7 psig
- Conforms to ANSI B109.4
- Corrosion-resistant exterior
Specifications:
- Gas types: Natural gas, LPG, other non-corrosive dry gases
- Maximum inlet pressure: 25 to 125 psig per orifice
- Maximum emergency inlet pressure: 175 psig
- Operating temperature: -40F to +140F
Parts and Accessories:
- NGR02/04/06/08 Vent Limiting Device
- NGR06/08 Industrial Regulator Springs
- NGR04/06 Valve Seat Buna-N
- NGR04/06 Regulator Orifices
- NGR04/06 Regulator Orifice Removal Tool
Resources:
- NGR06 Series Technical Literature
- NGR Relief Curves
- NGR Installation Instructions
B34 B34R ITRON
Click Here to see 7″ WC Capacity tables and Manufacturer Set Points:
Click Here to see 14″ WC Capacity tables and Manufacturer Set Points:
Click Here to see 1 PSIG Capacity tables and Manufacturer Set Points:
Click Here to see 2 PSIG Capacity tables and Manufacturer Set Points:
