Description
General information

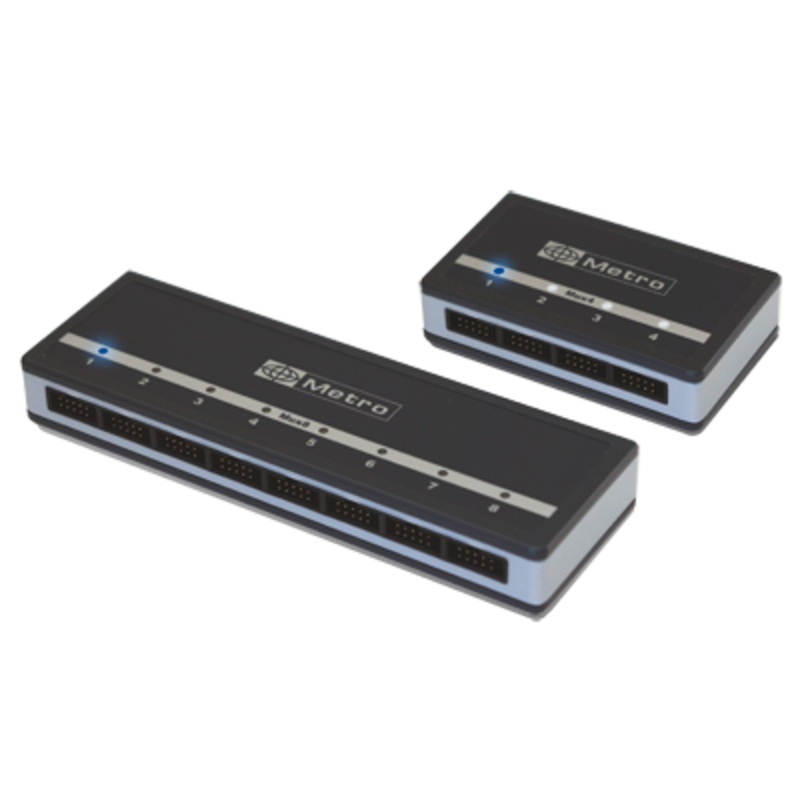

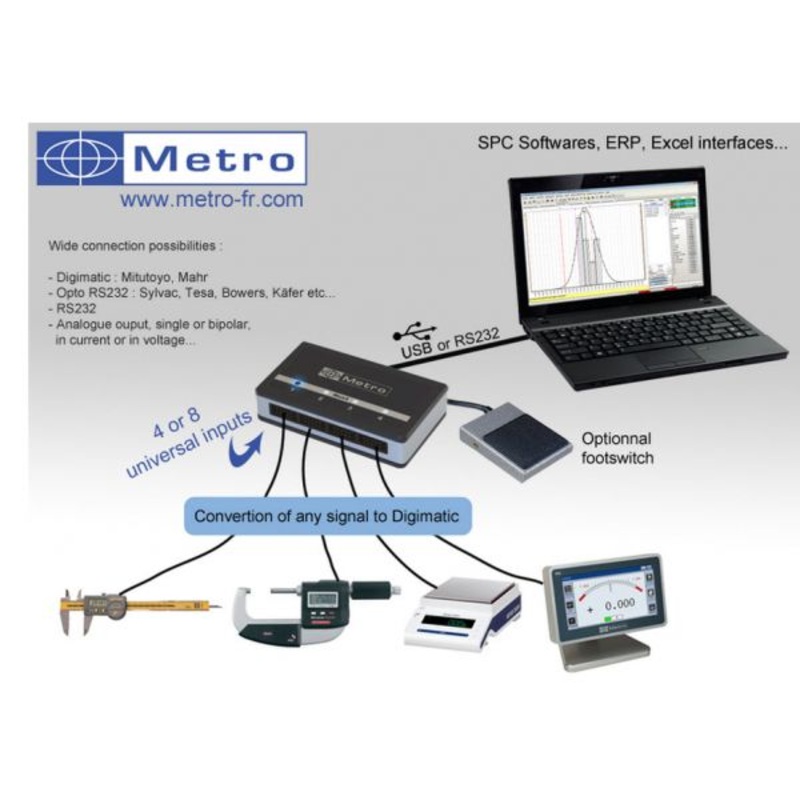

The Mux 4 and Mux 8 multiplexers allow the connection of 1 to 8 measuring instruments (calipers, micrometers, comparators, scales…) with a PC or other similar equipment equipped with a USB port or an RS 232 interface. The Mux 8 is only equipped with an RS 232 port
It supports measuring instruments equipped with the following interfaces:
- Digimatic : Mitutoyo, Mahr
- Opto RS232 : Sylvac, Tesa, Bowers etc..
- RS232
- Analog outputs, single or bipolar, in voltage or in current.
The recognition of the instruments is automatic.
Main features
- One RS 232 port for connection to a PC (only on Mux8)
- One USB port for connection to a PC
- 4 or 8 inputs for instruments.
- 1 external control input (pedal).
- Storage temperature : -40 C to +70 C.
- Operating temperature : +5C to +40C.
- Maximum relative humidity : 80 %.
- Dimensions: L 57mm, l 65mm, h 35 mm.
- Weight : 150 grams.
- Power supply 235 V Consumption : 2 VA
