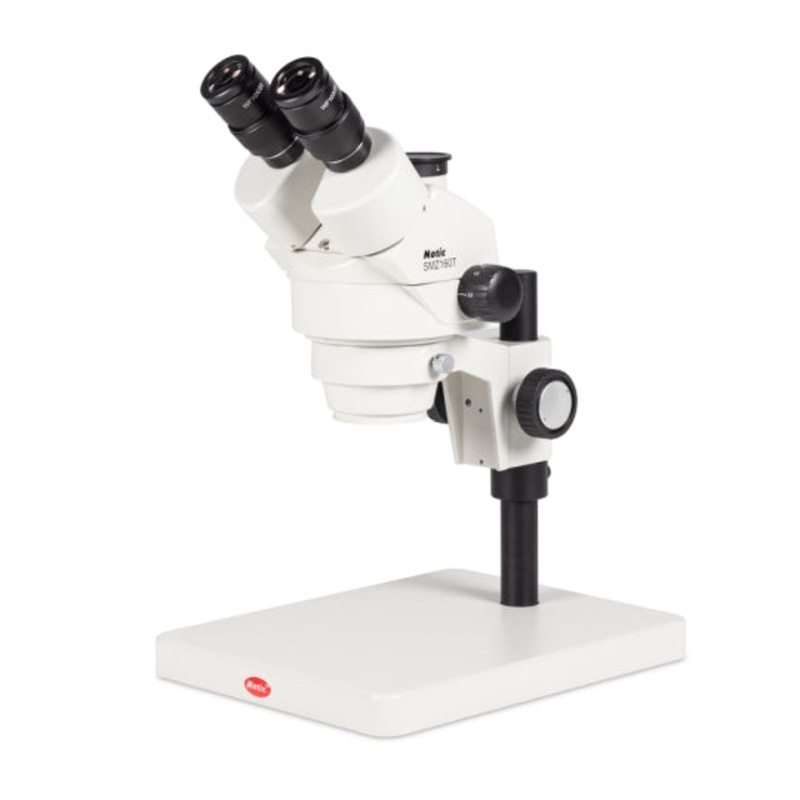

Motic SMZ-160-TP Trinocular Microscope 7.5X-45X with 10x Eyepiece Part no. 1100201300161 45 inclined

Description

Trinocular stereo microscope for education work in university and High school, but also for documentation in a QC lab. The Greenough optical system delivers clear and distortion-free images in a zoom of 6:1, giving a magnification range of 7.5x-45x in the standard outfit. The implemented click-stops allow precise reproduction of magnification. The photo port allows an adaption of a digital camera for measurements through software. The instrument comes without illumination: Choose the best external illumination that meets the requirements of your samples.

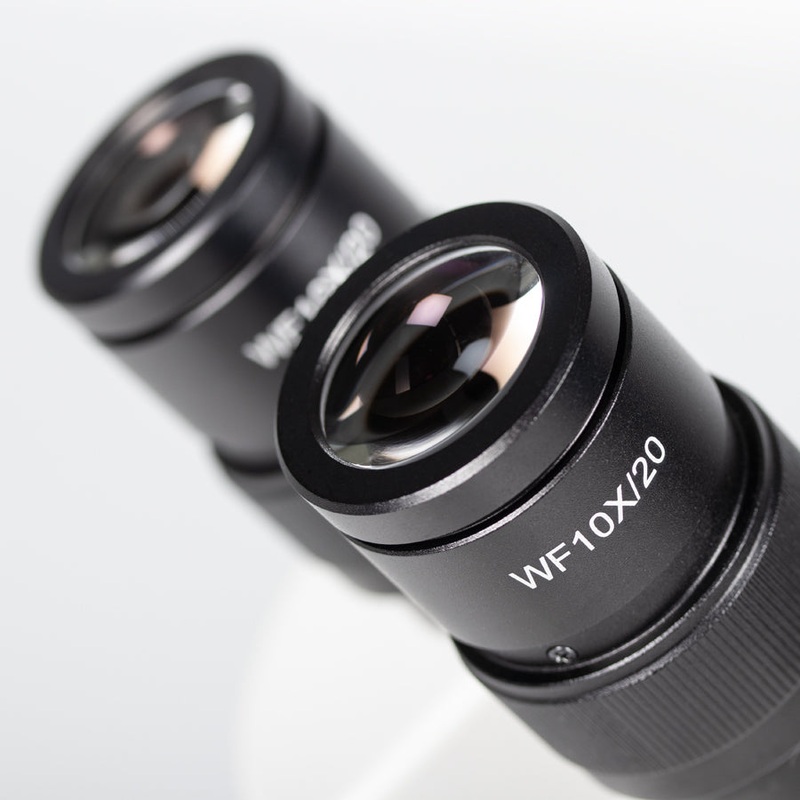

Observation tube Trinocular head Optical system Greenough Inclination 45 inclined Trinocular light split Fixed 50:50 Interpupillary distance 50-75mm Diopter adjustment On both tubes, +/- 5 diopter Eyepieces Widefield WF10X/20mm Objectives system Zoom, ratio 6:1 Objectives 0.75X~4.5X Working distance 100mm Stand type Pole type stand Head holder For 25mm column and 76mm head Focus mechanism Coarse focusing system with tension adjustment Focusing stroke 43mm Accessories included Dust cover Dimensions LxWxH 280x220x367mm Base 280x220mm Column/Arm Height 221mm, 25mm Weight Net 3.4kg Contrast techniques Standard contrast technique Brightfield
