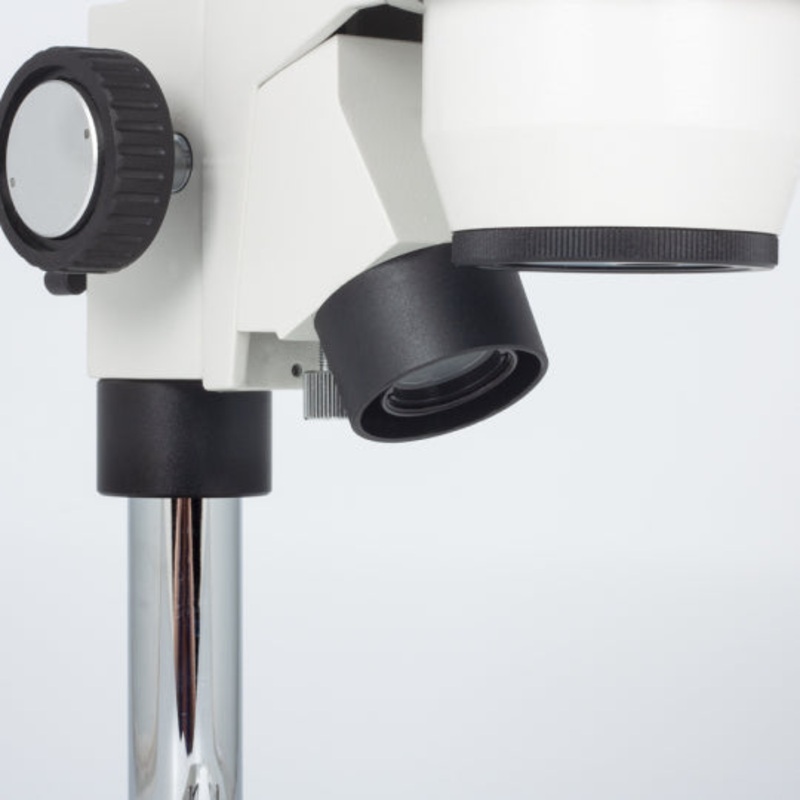

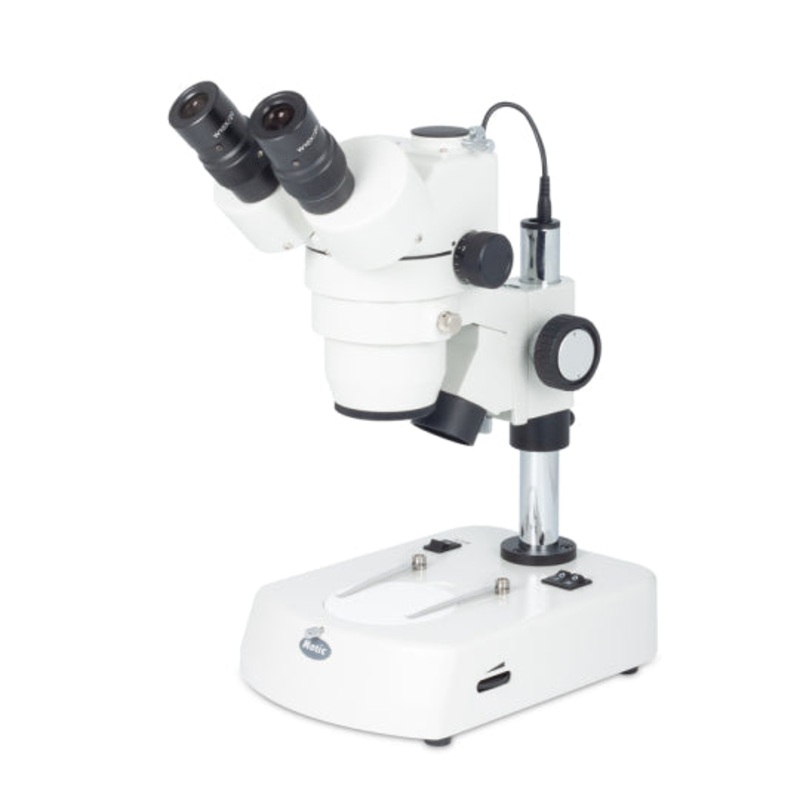

Motic SMZ-143-N2LED Trinocular Microscope head 10X-40X with 10x Eyepiece Part no. 1100200600834 45 inclined

Description

A basic Trinocular stereo microscope for educational environments in schools and universities. The Greenough optical system with LED illumination delivers high quality images in a parfocal 4:1 zoom. The standard magnification range of 10X-40X is the basis for the instructive work of students and lab technicians. The integrated photo port allows the easy attachment of a digital camera.

Observation tube Trinocular head Optical system Greenough Inclination 45 inclined, 360 rotating Trinocular light split 100:0/0:100 on right tube Interpupillary distance 54-76mm Diopter adjustment On both tubes, +/- 5 diopter Eyepieces Widefield WF10X/20mm Objectives system Zoom, ratio 4:1 Objectives 1X~4X Working distance 80mm Stand type Pole type stand with transmitted illumination Head holder For 25mm column and 74mm head with incident illumination Focus mechanism Coarse focusing system with tension adjustment Focusing stroke 45mm Incident illumination LED 3W with intensity control Transmitted illumination LED 3W with intensity control Transformer External Power supply 100-240V (CE) Accessories included Dust cover, black/white and frosted stage plates Dimensions LxWxH 237x170x335mm Base 237x170mm Column/Arm Height 210mm, 25mm Weight Net 6.2kg Contrast techniques Standard contrast technique Brightfield Polarization Optional add-on Darkfield Optional add-on
