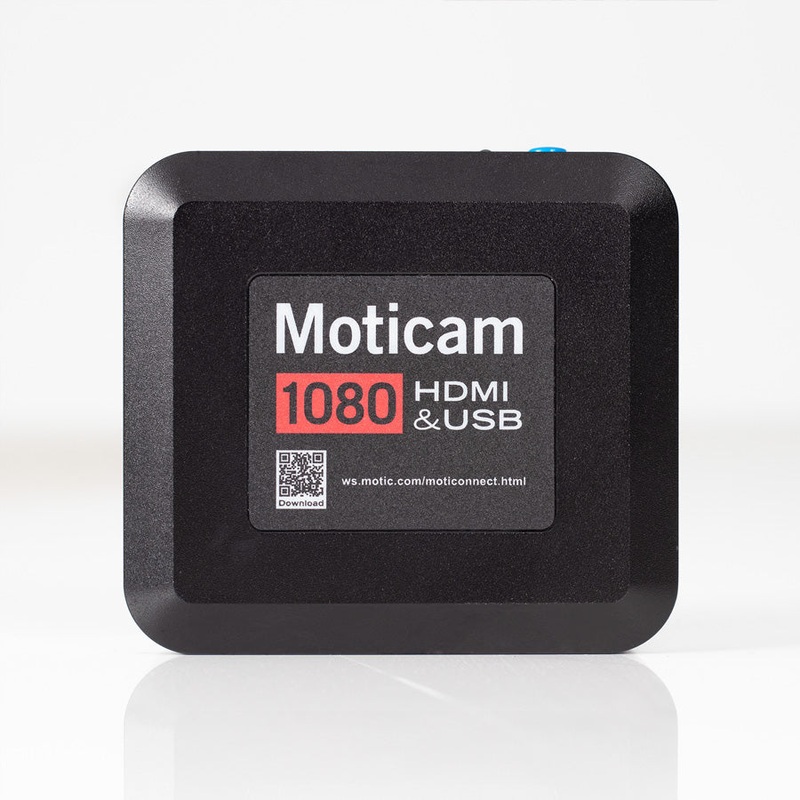

Moticam 1080N

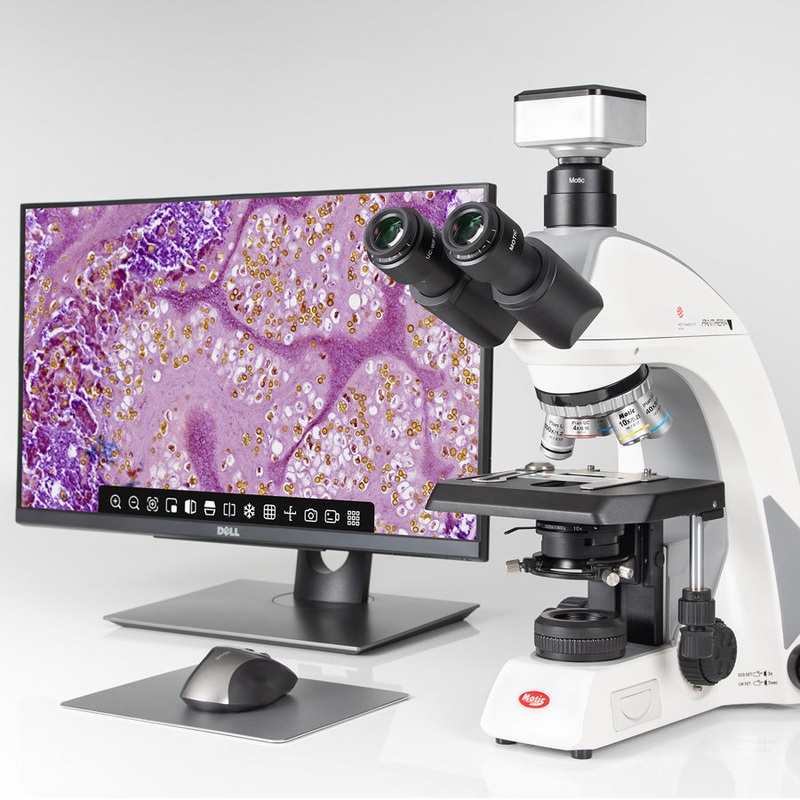

The Moticam 1080N, designed for ease of use and the ability to output fast live images in Full HD (1920x1080px), displays your live images on a screen by connecting the camera through the HDMI port. Make live measurements, annotations, image adjustments and more, thanks to its on-board software usable directly with a USB mouse connected to the camera. With its integrated micro SD card slot, saving images wont require a computer, making organizing your images and videos much easier. The USB port allows you to connect the camera to a computer, even simultaneously, and use the Motic Images Plus software.

Model Moticam 1080N Sensor type CMOS IMX307 Sensor size 1/2.8″ Imaging area 5.346×3.003mm Capture resolution info 6MP (3264X1836) Image capture resolution (on SD-card) 6MP (3264X1836) Video capture resolution (on SD-card) Full HD (1920×1080 pixels) Live display mode through USB Full HD (1920×1080 pixels) Live display mode through HDMI Full HD (1920×1080 pixels) Pixel size 2.9×2.9m Scan mode Progressive Data transfer HDMI (1080p), USB 2.0 Max. frames per second (fps) USB: 1920×1080 (Full HD) @ 30 fps, HDMI: 1920×1080 (Full HD) @ 60 fps (*) Exposure time 0.06ms ~ 40ms with Auto Exposure mode (0.06ms ~ 999ms with Manual Exposure mode) Operating temperature From -10 to +60 Degrees Celsius non condensing Max. signal to noise ratio 40dB Dynamic range 71dB Sensitivity 0.51V (Typical at 1/30 sec) Slot Micro-SD (max 128GB) Buttons On/Off Support device TWAIN and Direct Show Driver Supported OS Windows 7/8/10, MAC OSX, Linux or higher Minimum computer requirements 2GHz dualcore – RAM memory 2GB – Video memory min. 512 MB Lens mount C-Mount Focusable lens 12mm Software On Board Software and Motic Images Plus 3.1 and MAC OSX or higher Functions Still image capture, live image record, zoom in & out, magnifier, ROI, mirror, rotation, split, freeze, cross line, gallery, Auto/Manual exposure, gain, target brightness setting, light frequency, Auto/Manual white balance Mode, saturation, contrast, gamma, sharpness, denoise, user settings, systems time setting, language (English, Chinese and Japanese), format Micro-SD card. Power supply 12V (External Power supply) Package includes CS ring adaptor, focusable lens, 30mm and 38mm eyepiece adapters, USB 2.0 cable, HDMI cable, Motic 4-dot calibration slide, macro tube, Motic Images Plus 3.1, universal power supply Other features USB port for connecting a mouse to enable software control Notes (*) Frames per second under optimal lighting conditions and in compliance with computer technical requirements.
