Description

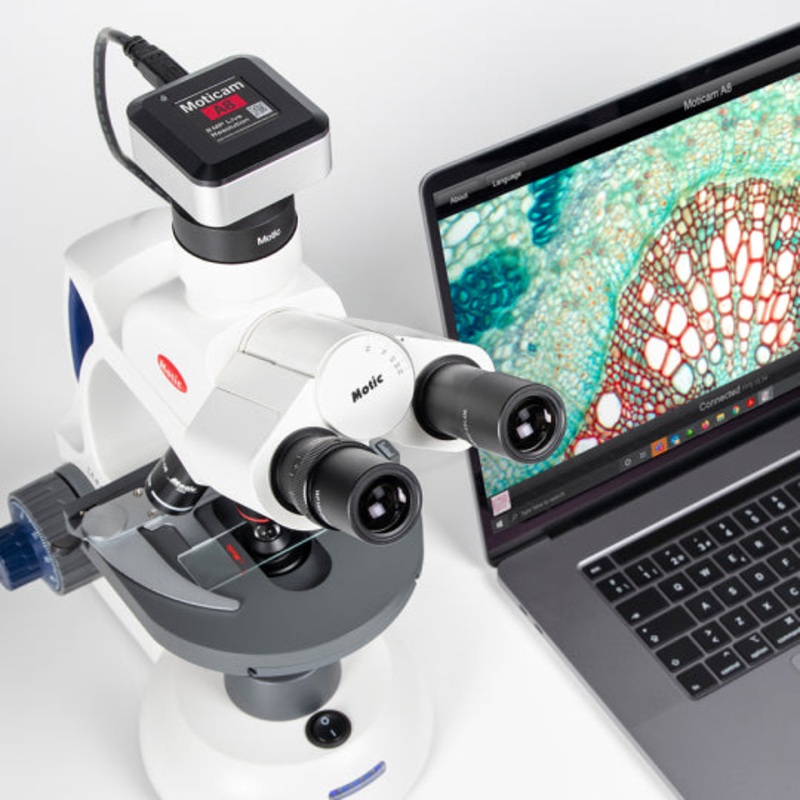

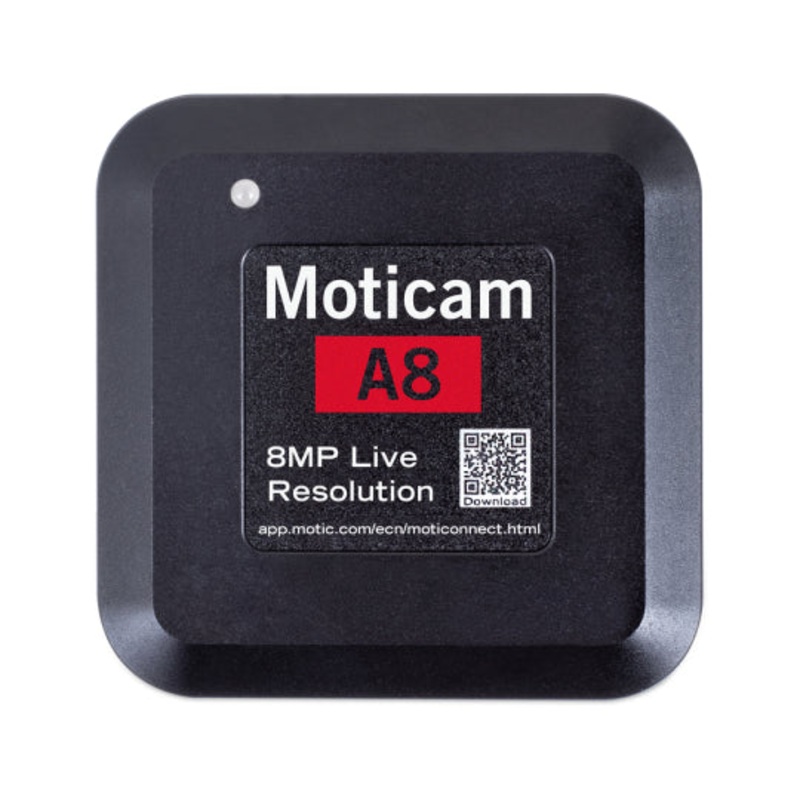

Moticam A8

The fast sCMOS imaging setup of the Moticam A8 allows 4K resolution while still delivering steady 15fps. Printing images needs high-resolution data and this Moticam delivers the detail needed. The ideal camera, for everyone who has high demands and wants to stay flexible.

Model Moticam A8 Sensor type sCMOS Sensor size 1/3″ Imaging area 5.91mm (Diagonal) Capture resolution info 8MP Live display mode through USB 3840×2160,1920×1080 pixels Pixel size 1.34×1.34m Scan mode Progressive Shutter mode Rolling Shutter Data transfer USB 2.0 Max. frames per second (fps) 3840×2160 @ 15fps, 1920×1080 @ 30fps (*) Operating temperature From -10 to +60 Degrees Celsius non condensing Sensitivity >2000mV Support device TWAIN, SDK and Direct Show Driver Minimum computer requirements 2GHz dualcore – RAM memory 2GB Lens mount C-Mount Focusable lens 12mm Software MotiConnect for Windows 10, MAC OSX10.9 or higher (download only) Functions Still image and video capture, still image measurement, image adjustments, automatic and manual white balance, automatic and manual exposure, individual objective calibration system. Power supply 5V (USB supply) Package includes CS ring adaptor, focusable lens, 30mm and 38mm eyepiece adapters, USB 2.0 cable, Motic 4-dot calibration slide, macro tube, Calibration card Other features (*) Frames per second under optimal lighting conditions and in compliance with computer technical requirements.
