Description

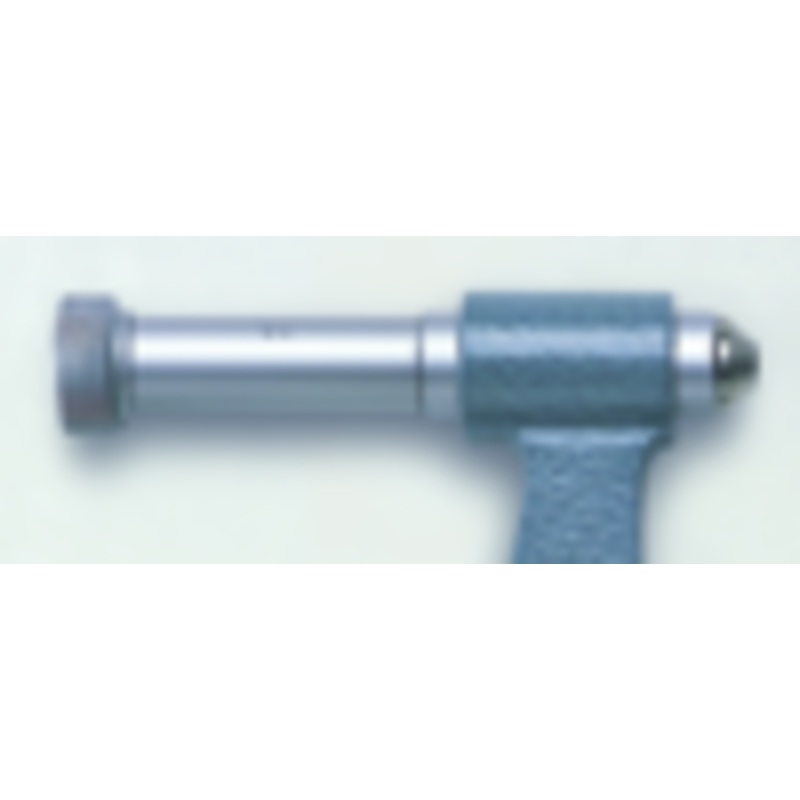

Outside Micrometer with Anvil Extension Collar
This Outside Micrometer comes with Extension Anvil Collars.
It offers you the following benefits:
- The collars have a stable and rugged yet lightweight tube construction, and are ideal for large micrometers.
- The 50mm spindle stroke gives you extended range compared to standard spindle types.
- Anvil collars extend the measuring range even further.
- The setting standards supplied cover the whole measuring range.
- Range: 600-700mm
- Graduation 0.01mm
- Flatness: 0.0013mm
- Parallelism: 0.009mm
- Measuring force: 5-10N
- Extension collar: 50mm
- Carbide tipped, micro-lap finish
- With spindle lock: 8 mm diameter
- Spindle pitch: 0.5 mm
- Thimble and sleeve satin chrome finish: 21 mm diameter
- Analogue
- Metric
