Description
Bore Gauges- Series 511-Standard Type
Series 511
FEATURES
Mitutoyo offers a complete selection of Bore Gauges,all of them with interchangeable anvils and necessary accessories to perform close tolerance ID measurements.
Most popular Bore Gauges.
Carbide-tipped contact points for durability.
The dial indicator is fully protected by a rugged cover.
Optional extension rods can be attached for measuring deep holes.
Technical Data
Accuracy: 5m / .0002
Indication stability: 2m / .00008
Graduation: 0.01mm, 0.001mm, .0005″ or .0001″
Optional Accessories
953549: 125mm / 4.92 Extension rod for 18-35mm / .7 -1.4″ models
953552: 125mm / 4.92 Extension rod for 35-160mm / 1.4 – 6.5″ models
953557: 125mm / 4.92 Extension rod for 160-400mm / 6.5 – 16″ models
953550: 250mm / 9.84 Extension rod for 18-35mm / .7 – 1.4″ models
953553: 250mm / 9.84 Extension rod for 35-160mm / 1.4 – 6.5″ models
952361: 250mm / 9.84 Extension rod for 160-400mm / 6.5 – 16″ models
953551: 500mm / 19.69 Extension rod for 18-35mm / .7 – 1.4″ models
953554: 500mm / 19.69 Extension rod for 35-160mm / 1.4 – 6.5″ models
953558: 500mm / 19.69 Extension rod for 160-400mm / 6.5 – 16″ models
953555: 750mm / 29.53″ Extension rod for 35-160mm / 1.4 – 6.5″ models
953559: 750mm / 29.53 Extension rod for 160-400mm / 6.5 – 16″ models
953556: 1000mm / 39.37 Extension rod for 35-160mm / 1.4 – 6.5″ models
953560: 1000mm / 39.37 Extension rod for 160-400mm / 6.5 – 16″ models

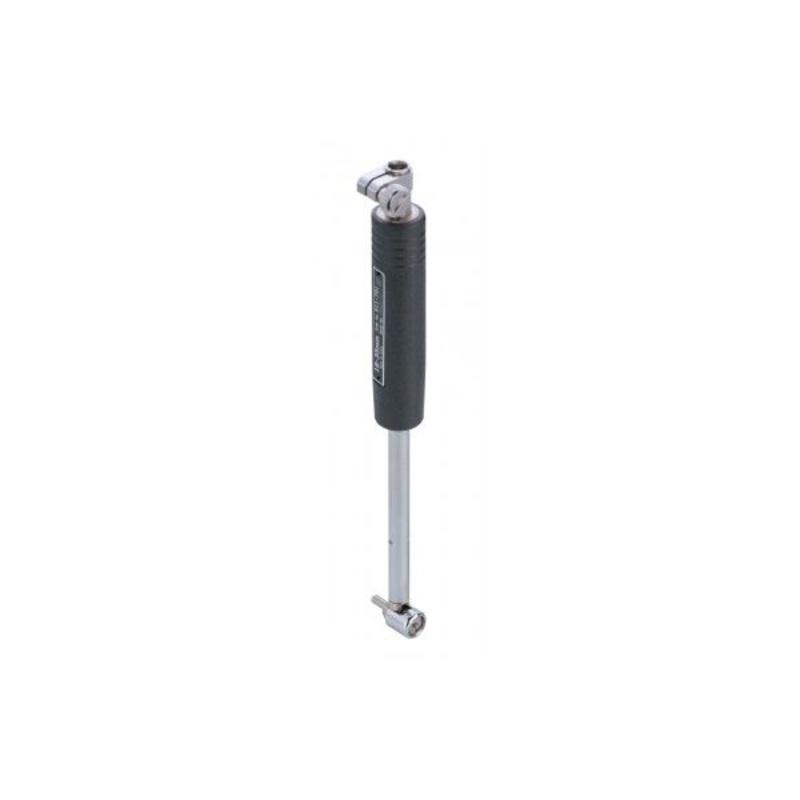

Mitutoyo Series 511 Metric Bore Gauge Without Indicator Meas. Depth: 100mm, No.: 511-701 Range: 18-35mm
