Mitutoyo Disc Micrometer, Hardened Steel Disks 75-100mm, Disk=20mm 123-104

Original price was: $213.50.Current price is: $106.75.

SKU: TEEIad5aSwhX6 Category:

Description

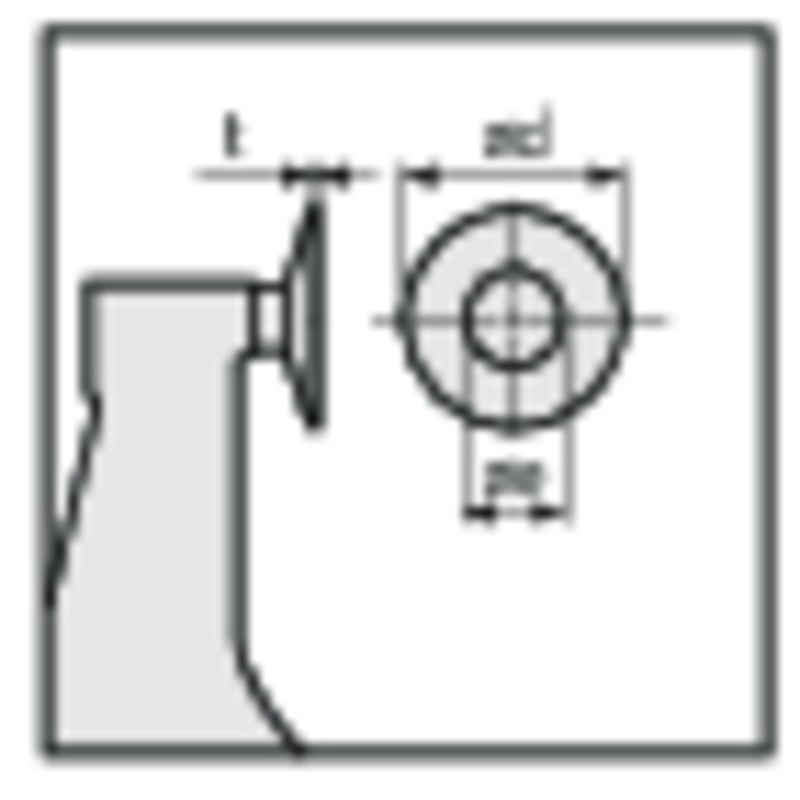

A Mitutoyo non-digital micrometer provided with disc-ended spindle and anvil to enable measurement of shrouded features, such as gear teeth. A ratchet stop guarantees repeatable measurement.

Specification

Digital/Analog: Analog

Delivered: Including box, spanner, setting standard

Inch-Metric: Metric

Range: 75 – 100 mm

Graduation: 0,01 mm

Max.
Permissible Error
J MPE:
6 m

Flatness: 1 m

Parallelism: 6 m

Measuring face: Carbide-tipped (123-113, -114, -115, -116) or hardened steel spindle and anvil

Measuring spindle: With spindle lock, 6,35 mm, spindle pitch 0,5 mm

Scale: Thimble and sleeve satin chrome finish, 18 mm

Measuring force: 5 – 10 N

Measurable module: 0.5 – 6 mm

Delivered: Including box, setting standard (from 25 mm upward), key

Mass: 375 g
