Mitutoyo Digital Tubular Inside Micrometer (Rod) Inch/Metric, 8-60, IP65, incl. 7 Rods 337-304

Original price was: $1,043.00.Current price is: $150.00.

SKU: TEElya0DTeKt8 Category:

Description

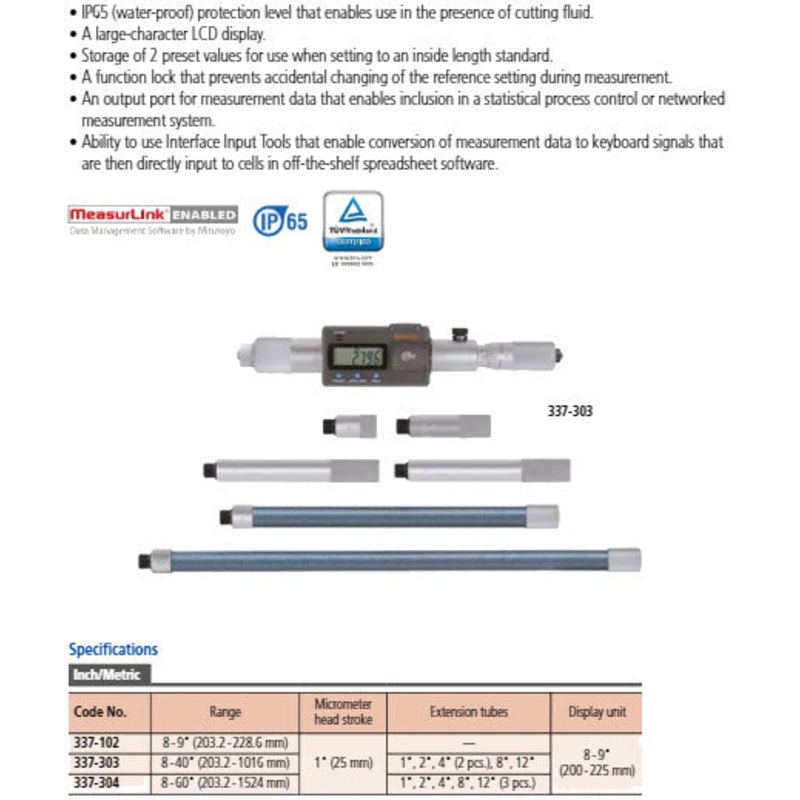

This is an extension rod type inside micrometer that offers you the following benefits:

  • Interchangeable extensions with cylindrical gage rods are spring-mounted in protective sleeves so you can extend the measuring range.
  • Carbide measuring faces.
  • Digimatic type, with data output.
  • It has excellent resistance against water and dust (IP65 protection level) enabling you to use it in machining situations that include splashing coolant fluid.

Specification

Digital/Analog: Digital

Inch-Metric: Inch/Metric

Range: 8 – 60

Measuring span: 1″

Digital step: 0,0001″/0,001 mm

Limit of error: (0,00015+0,00005xnumber of rods+0,00005(max. measurement length/2))”

Scale: Thimble and sleeve satin chrome finish, 18 mm

Display: LCD, character height 7.5 mm

Measuring spindle: Spindle pitch 0,635 mm

Measuring face: Carbide

Extension: 12,5 mm

Extension rods: 7 (1, 2, 4, 8, 12″ (3 pcs.))

Power supply: 1 battery SR-44

Delivered: Including box, key, 1 battery, extensions, micrometer head

DATA/HOLD: Yes

ABS / INC (INC ZERO): Yes

Auto Power OFF after 20 min. non use: Yes

Low voltage alarm: Yes

Function lock: Yes

2 x PRESET: Yes

Delivered: Including box, spanner, 1 SR44 battery, 7 extension rods, micrometer head (main unit) 137-102

Spindle feed error: 0.00015 inch

Data output: Yes

Mass: 1410 g
