Name: Mitutoyo Digital Spline Micrometer IP65 Inch/Metric, 3-4, 3mm Measuring Face 331-354-30
SKU: TEEigJ3Wn15M9
Price: 150.00 USD
Availability: InStock

Description

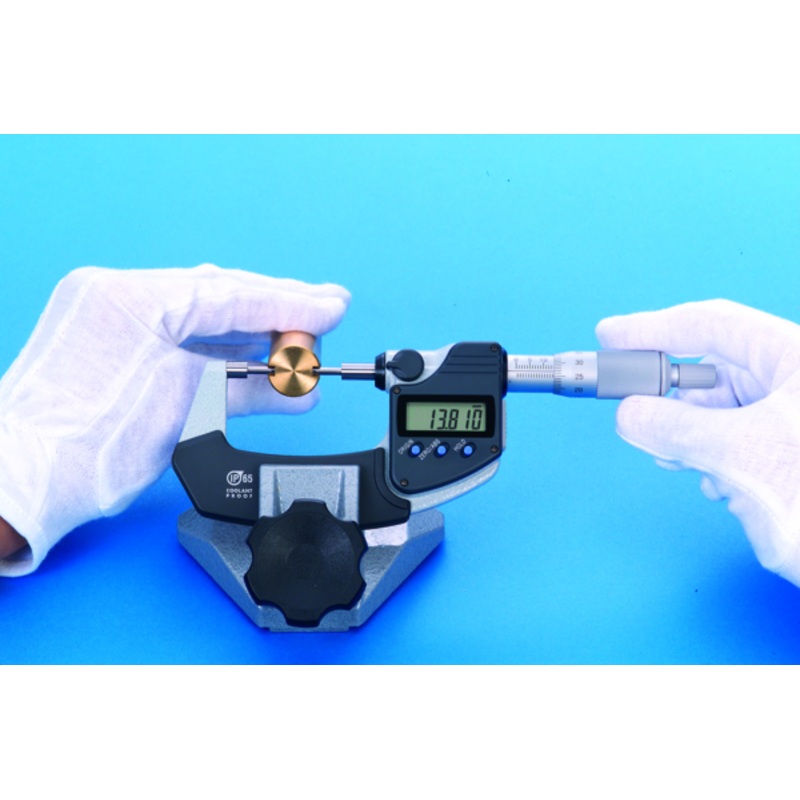

Mitutoyo; Digital Spline Micrometer

This Digimatic Spline Micrometer makes it easy for you to measure grooves and shaped parts. It offers you the following benefits:

Anvil and spindle are of small diameter for measuring splined shafts, slots and keyways.
Excellent resistance against water and dust (IP65 protection level) enables this micrometer to be used in machining situations that include splashing coolant fluid.

Specification

Digital/Analog: Digital

Delivered: Including box, spanner, setting standard, 1 SR44 battery

Inch-Metric: Inch/Metric

Range: 3 – 4 “/75-100mm

Digital step: 0,00005″/0,001 mm

Max.
Permissible Error
J MPE: 0,00015″/.004mm

Flatness: 0,000012″/.00003mm

Parallelism: 0,00012″/.003mm

Display: LCD, character height 7.5 mm

Measuring face: Carbide-tipped, micro-lap finish, stepped

Anvil / Spindle: Type A, D=3 mm

Measuring spindle: With spindle lock, 6,35 mm, spindle pitch 0,5 mm

Scale: Thimble and sleeve satin chrome finish, 18 mm

Measuring force: 5 – 10 N

Power supply: 1 battery SR-44

Battery life: Approx. 2.4 years

Delivered: Including box, setting standard (from 25 mm upward), key, 1 battery

ORIGIN: Yes

ABS / INC (INC ZERO): Yes

Auto Power OFF after 20 min. non use: Yes

Low voltage alarm: Yes

Function lock: Yes

HOLD: Yes

Mass: 565 g
