Mitutoyo Digital Spline Micrometer IP65 Inch/Metric, 25-50mm/1-2, 3mm Measuring Face 331-352-30

Original price was: $431.90.Current price is: $129.57.

SKU: TEET18297bpkw Category:

Description

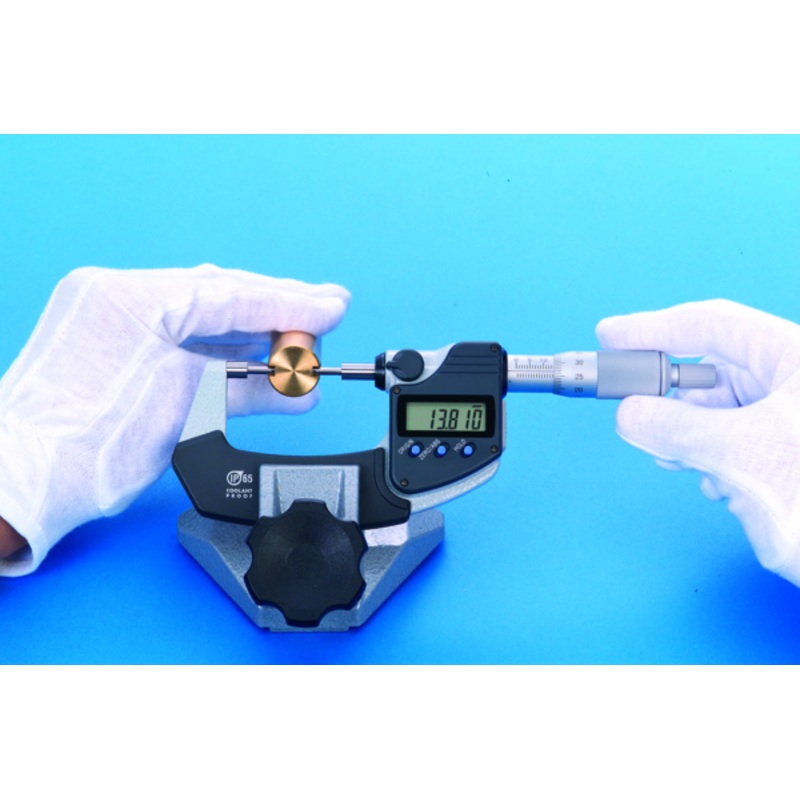

Mitutoyo; Digital Spline Micrometer

This Digimatic Spline Micrometer makes it easy for you to measure grooves and shaped parts. It offers you the following benefits:

  • Anvil and spindle are of small diameter for measuring splined shafts, slots and keyways.
  • Excellent resistance against water and dust (IP65 protection level) enables this micrometer to be used in machining situations that include splashing coolant fluid.

Specification

Digital/Analog: Digital

Delivered: Including box, spanner, setting standard, 1 SR44 battery

Inch-Metric: Inch/Metric

Range: 1 – 2 “/25-50mm

Digital step: 0,00005″/0,001 mm

Max.
Permissible Error
J MPE: 0,0001″/.0025mm

Flatness: 0,000012″/.003mm

Parallelism: 0,00008″/.002mm

Display: LCD, character height 7.5 mm

Measuring face: Carbide-tipped, micro-lap finish, stepped

Anvil / Spindle: Type A, D=3 mm

Measuring spindle: With spindle lock, 6,35 mm, spindle pitch 0,5 mm

Scale: Thimble and sleeve satin chrome finish, 18 mm

Measuring force: 5 – 10 N

Power supply: 1 battery SR-44

Battery life: Approx. 2.4 years

Delivered: Including box, setting standard (from 25 mm upward), key, 1 battery

ORIGIN: Yes

ABS / INC (INC ZERO): Yes

Auto Power OFF after 20 min. non use: Yes

Low voltage alarm: Yes

Function lock: Yes

HOLD: Yes

Mass: 470 g
