Mitutoyo Digital Sheet Metal Micrometer Inch/Metric, 0-25mm/0-1, 300mm/12 Throat 389-714
Product image
-81%
Product image
Product image

Mitutoyo Digital Sheet Metal Micrometer Inch/Metric, 0-25mm/0-1, 300mm/12 Throat 389-714

Original price was: $784.00.Current price is: $146.00.

SKU: TEEiQBlQGBqQ8 Category:

Description

A Mitutoyo waterproof digital micrometer suitable for use in the presence of coolant or cutting oil. The extra-deep frame (305mm / 12″) enables measurement of sheet metal thickness farther from the edge of a sheet than is possible with a standard deep-frame micrometer. A ratchet stop guarantees repeatable measurement. Digimatic data output.

Specification

Digital/Analog: Digital

Delivered: Including box, spanner, 2 SR44 batteries

Inch-Metric: Inch/Metric

Range: 0 – 1 “/0-25mm

Digital step: 0,00005″/0,001 mm

Max.
Permissible Error
J MPE: 0,00025″/.006mm

Flatness: 0,00004″/.001mm

Parallelism: 0,00012″/.003mm

Display: LCD, character height 7.5 mm

Measuring face: Carbide-tipped, micro-lap finish

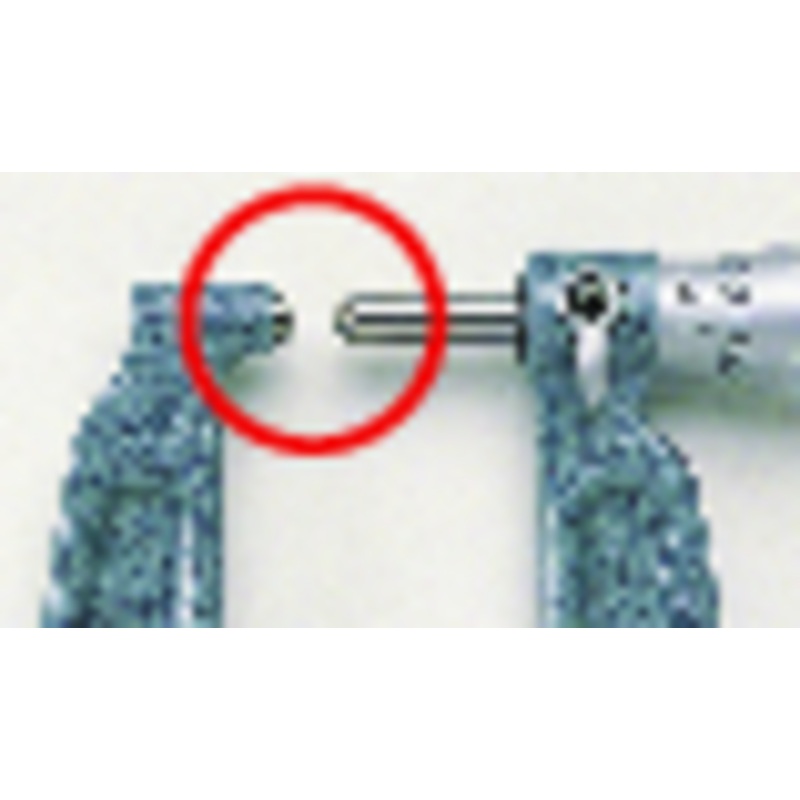

Anvil / Spindle: Type A, flat/flat

Measuring spindle: With spindle lock, throat depth 150 mm : 6,35 mm
throat depth =300 mm : 8 mm, spindle pitch 0,5 mm

Scale: Thimble and sleeve satin chrome finish, 21 mm

Measuring force: 10 – 14 N

Power supply: 2 batteries SR-44

Battery life: Approx. 2.4 years, Approx. 1.8 years (389-514)

Delivered: Including box. key, 2 batteries
