Description

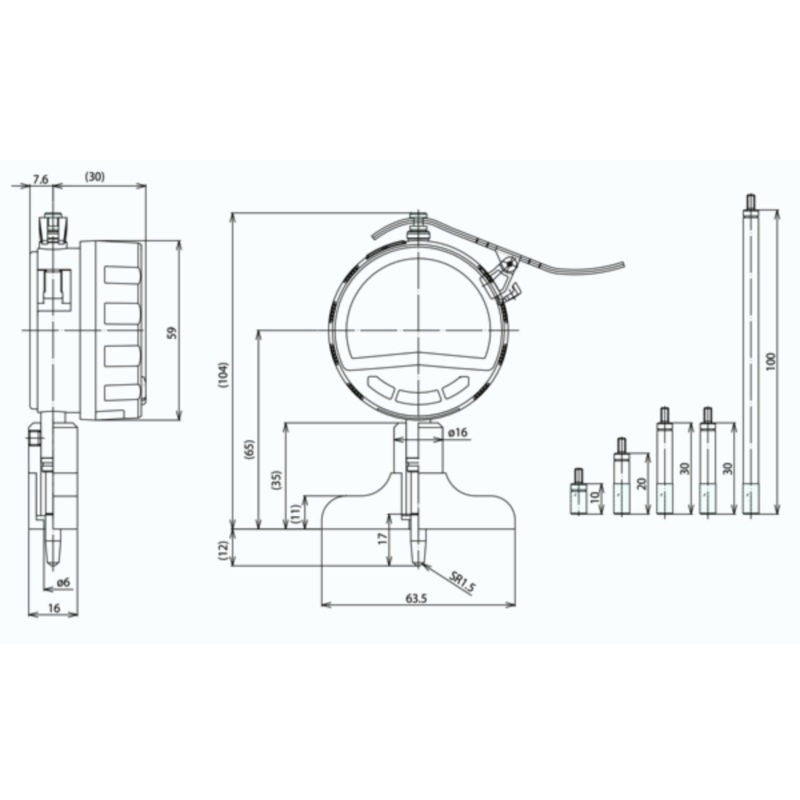

Mitutoyo; Digital Depth Gauge
| Digital/Analog: |
Digital
|
| Inch-Metric: |
Inch/Metric
|
| Range: |
0 – 8 “
|
| Digital step: |
0,00002″/0,0005 mm
|
| Stroke: |
0.6 mm
|
| Accuracy: |
0,0002″/ 5 m
|
| Base flatness: |
0.00008″/ 2 m
|
| Scale: |
Capacitance type ABSOLUTE linear encoder
|
| Contact point: |
Carbide ball, thread: # 4-48UNF
|
| DATA/HOLD: |
Yes
|
| PRESET: |
Yes
|
| ON/OFF: |
Yes
|
| Lock function: |
Yes
|
| GO/NG judgement: |
Yes
|
| MAX/MIN/RANGE: |
Yes
|
| ZERO/ABS: |
Yes
|
| ABS / INC (INC ZERO): |
Yes
|
| Alarm: |
Low voltage, setting errors, sensor error, display overflow a.s.o.
|
| Power supply: |
1 battery CR2032 (3V)
|
| Measuring force: |
1.5 N
|
| Battery life: |
Approx. 7000 hours
|
| Delivered: |
Including box and extensions 0,5, 1, 2, 4″, contact point 21JZA243
|
| Mass: |
335 g
|
| Delivered: |
Including box and extensions 0,5, 1, 2, 4″, contact point 21JZA243
|
| Analog bar resolution selection: |
Yes
|
| Auto Power OFF setting: |
Yes
|
| Calculation function (with formula): |
Yes
|
| Customizing keys: |
Yes
|
| Counting direction switchable: |
Yes
|
| Calibration warning function: |
Yes
|
