Name: Mitutoyo Digital Blade Micrometer, Blade=0,75mm 50-75mm 422-232-30
SKU: TEEAVLDcDsfIf
Price: 150.00 USD
Availability: InStock

Description

All images are for representation only.

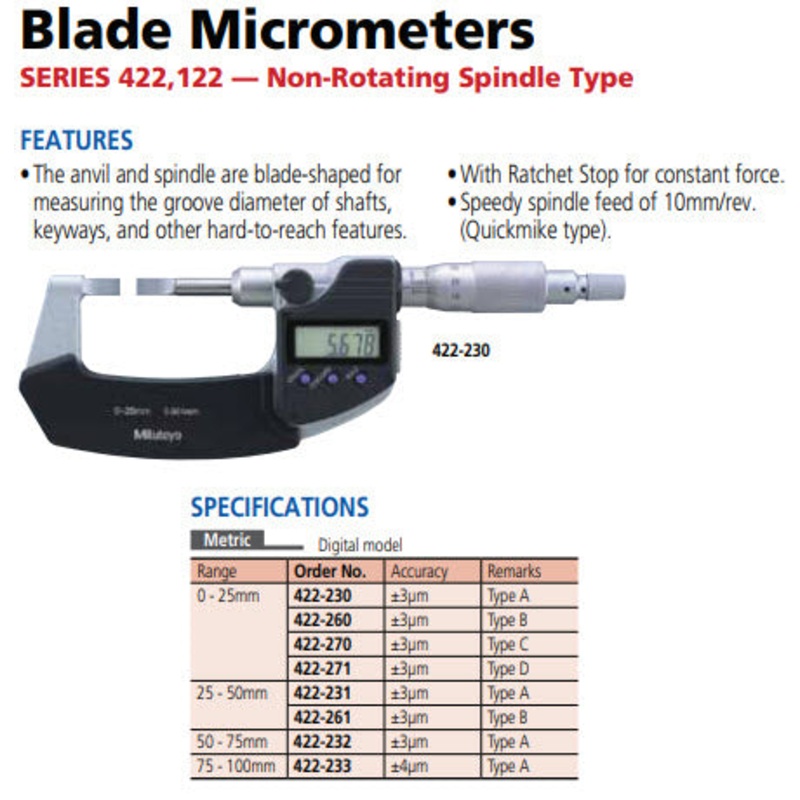

This Digimatic Blade Micrometer is designed to help you measure hard-to-reach features. It offers the following benefits:

Blade-shaped anvil and spindle for measuring the groove diameter of shafts, keyways and other hard-to reach features
Non-rotating spindle

Features

Digital/Analog: Digital

Delivered: Including box, spanner, setting standard, 1 SR44 battery

Inch-Metric: Metric

Range: 50 – 75 mm

Digital step: 0,001 mm

Max.
Permissible Error
J MPE: 3 m

Parallelism: 3 m

Display: LCD, character height 7.5 mm

Measuring face: Carbide-tipped or hardened steel spindle and anvil

Anvil / Spindle: Type A, hardened steel t=0.75 mm

Measuring spindle: With spindle lock, 6,35 mm, spindle pitch 0,5 mm

Scale: Thimble and sleeve satin chrome finish, 18 mm

Measuring force: 3 – 8 N

Power supply: 1 battery SR-44

Battery life: Approx. 2.4 years

ORIGIN: Yes

ABS / INC (INC ZERO): Yes

Auto Power OFF after 20 min. non use: Yes

Low voltage alarm: Yes

Function lock: Yes

HOLD: Yes

Mass: 465 g

Mitutoyo Digital Blade Micrometer, Blade=0,75mm 50-75mm 422-232-30
