Description
The Mitutoyo 468-986 Digimatic Holtest Three-Point Internal Micrometer Set has the following specifications:
- Range: .275-.500/6.925-12.7mm
- Resolution: .00005/.001mm
- Complete Unit Set
The Mitutoyo Digimatic Holtest internal micrometer utilizes three anvils and contact points for self-centering, precision measurements of the inside dimensions of bores. The 468-986 Mitutoyo Digimatic Holtest digital internal micrometer set features self-centering anvils evenly spaced at 120 with contact points coated in Titanium Nitride (TiN) to provide accurate, sensitive measurements that are highly durable. Precision-machined gears ensure reliable, repeatable measurements that are shown on a large, easy-to-read LCD display in an impact and water resistant housing. The holtests ratchet stop mechanism provides a constant measuring force on the hardened-steel spindle to ensure accurate, even measurements.
Features:
- Available in Metric and Inch/Metric models
- Optional extension rod allows for measuring deep holes
- SPC output function allows for quick and easy data management in real time
- Functions include Zero/ABS Setting, Data Hold, Data Output, Function Lock, 2 Presets, and inch/mm conversion (on inch/metric models only)
- Alarm: Low Voltage, Counting Value Composition Error, Battery Replacement
- Scale on thimble and sleeve is laser etched for easier reading in all conditions
- IP65 protection permits use in environments exposed to cutting oil, dust, etc.*
- Holtests up to 4/100mm diameter measurements supplied in a fitted plastic case

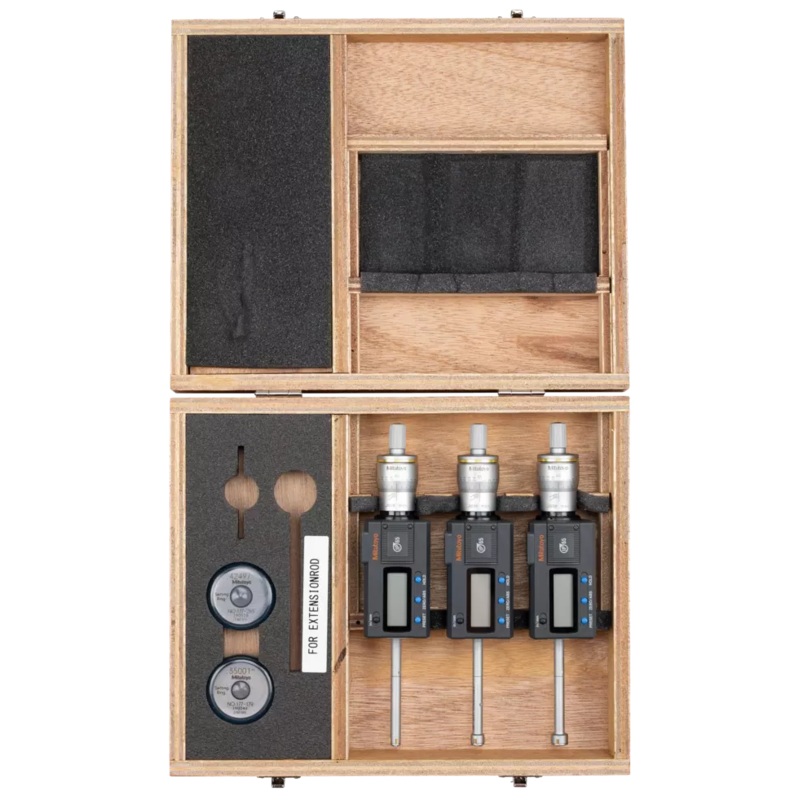

- Holtests over 4/100mm diameter measurements supplied in a wooden case
