Mitutoyo Digital 3 Flute V-Anvil Micrometer 25-40mm 314-253-30

Original price was: $672.70.Current price is: $146.00.

SKU: TEEWlZhu01qSw Category:

Description

This Digimatic V-Anvil Micrometer helps you to measure cutting tools and taps.
It offers the following benefits:

  • It measures the outside diameter of cutting tools (such as taps, reamers, end mills) which have three flutes.
  • V-anvils with a centreline groove are available for measuring the pitch diameter of taps by the single-wire method.

Features

Digital/Analog: Digital

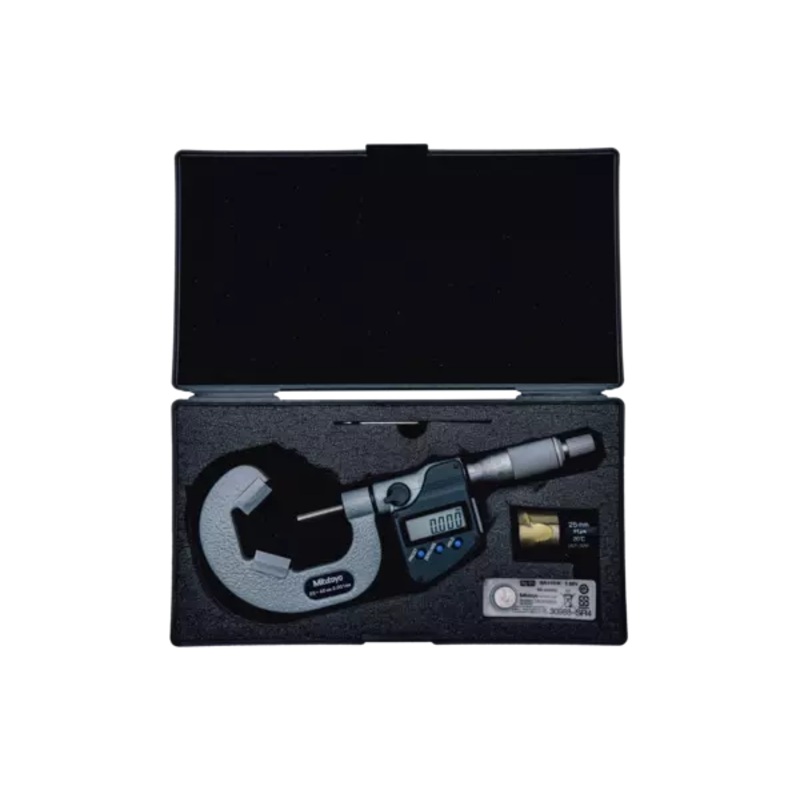

Delivered: Including box, spanner, setting standard, 1 SR44 battery

Inch-Metric: Metric

Range: 25 – 40 mm

Digital step: 0,001 mm

Max.
Permissible Error
J MPE:
5 m

Anvil: Without groove

Display: LCD, character height 7.5 mm

Measuring face: Prism angle 60

Measuring spindle: With spindle lock, 6,35 mm, spindle pitch 0,75 mm

Scale: Thimble and sleeve satin chrome finish, 18 mm

Measuring force: 5 – 10 N

Power supply: 1 battery SR-44

Battery life: Approx. 2.4 years

Setting standard: 167-329 25 mm

ABS / INC (INC ZERO): Yes

Auto Power OFF after 20 min. non use: Yes

Low voltage alarm: Yes

Function lock: Yes

HOLD: Yes

2 x PRESET: Yes

Mass: 465 g
