Description

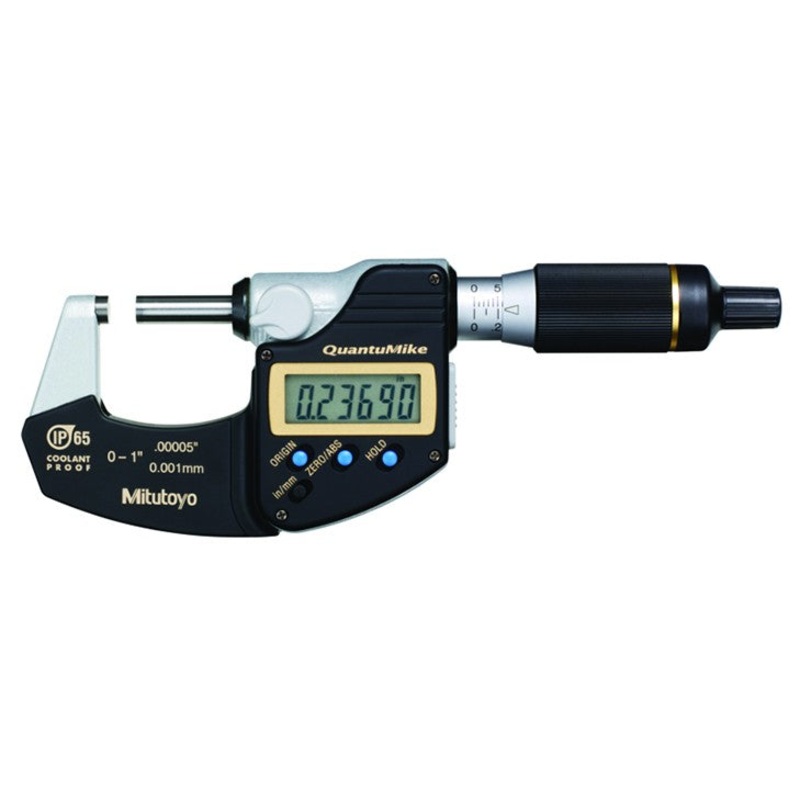

This is an IP65 micrometer offering movement four times as fast as a standard micrometer. It presents you with the following benefits:
- Faster measurement is achieved by using a coarser thread which feeds the spindle by 2 mm per thimble rotation.
- Extraordinary battery life of 2.4 years
- Outstanding accuracy
- Ratched thimble mechanism ensures easy single-handed or stand operation.
- Excellent resistance against water and dust (IP65 protection level) enables this micrometer to be used in machining sit.
0-25mm Micrometer Features:
- Range: 0-25mm (0-1)
- Resolution: 0.001mm (0.00005)
- Accuracy: 0.001mm (0.00005)
- Flatness: 0.0003mm (0.000012)
- Parallelism: 0.001mm (0.00004)
- IP65 Protected: Waterproof (coolant & dust resistant)
- 2mm travel per thimble rotation
- Carbide measuring faces, micro lap finish
- Ratchet thimble
- Inch-mm conversion
- Thimble and Sleeve scale
- Hold function
- MPN:293-185-30
- Brand: Mitutoyo
25-50mm Micrometer Features:
- Range: 25mm-50mm (1-2)
- Resolution: 0.001mm (0.00005)
- Accuracy: 0.001mm (0.00005)
- Flatness: 0.0003mm (0.000012)
- Parallelism: 0.001mm (0.00004)
- IP65 Protected: Waterproof (coolant & dust resistant)
- 2mm travel per thimble rotation
- Carbide measuring faces, micro lap finish
- Ratchet thimble
- Battery Life: 2.4 Years
- No data output
- Inch-mm conversion
- Hold function
- Auto Power OFF after 20 min non use
- Measuring Spindle: with spindle lock, 6.35mm diameter, spindle pitch 0.5mm
- MPN:293-186-30
- Brand: Mitutoyo
50-75mm Micrometer Features:
- Range: 50mm-75mm (2-3)
- Resolution: 0.001mm (0.00005)
- Accuracy: 0.001mm (0.00005)
- Flatness: 0.0003mm (0.000012)
- Parallelism: 0.002mm (0.00008)
- IP65 Protected: Waterproof (coolant & dust resistant)
- 2mm travel per thimble rotation
- Carbide measuring faces, micro lap finish
- Ratched thimble
- Inch-mm conversion
- Hold function
- Auto Power OFF after 20 min non use
- Measuring Spindle: with spindle lock, 6.35mm diameter, spindle pitch 2mm
- MPN:293-187-30
- Brand: Mitutoyo
75-100mm Micrometer Features:
- Range: 75mm-100mm (3-4)
- Resolution: 0.001mm (0.00005)
- Accuracy: 0.002mm (0.0001)
- Flatness: 0.0003mm (0.000012)
- Parallelism: 0.002mm (0.00008)
- IP65 Protected: Waterproof (coolant & dust resistant)
- 2mm travel per thimble rotation
- Carbide measuring faces, micro lap finish
- Ratchet thimble
- Battery Life: 2.4 Years
- No data output
- Inch-mm conversion
- Hold function
- Auto Power OFF after 20 min non use
- Measuring Spindle: with spindle lock, 6.35mm diameter, spindle pitch 2mm
- MPN:293-188-30
- Brand: Mitutoyo
