Description
Description:

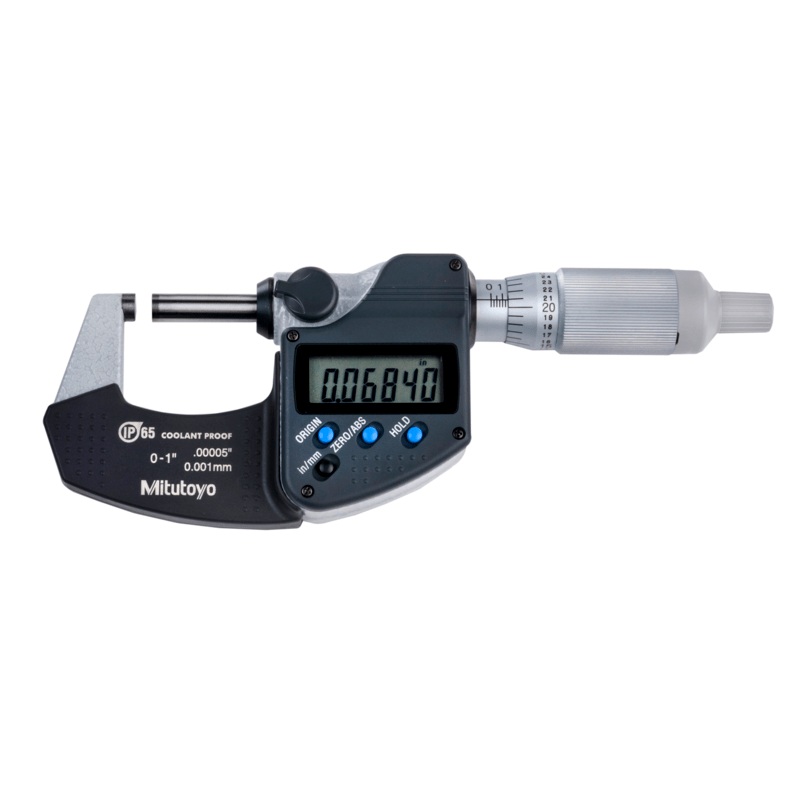

This IP65 Micrometer offers outstanding accuracy without data output, is highly robust, and offers the following benefits:
- Oil-resistant material used for all plastic parts
- Extraordinary battery life of approx. 2.4 years
- IP65: Excellent resistance against water and dust enables this micrometer to be used in machining situations that include splashing coolant fluid.
Micrometer Features:
0-25mm (0-1″):
- Range: 0-25m (0-1)
- Resolution: 0.001mm (0.00005)
- Accuracy: 0.001mm (0.00005)
- Flatness: 0.0003mm (0.000012)
- Parallelism: 0.001mm (0.00004)
- IP65 Protected: Waterproof (coolant & dust resistant)
- 2mm travel per thimble rotation
- Carbide measuring faces, micro lap finish
- Ratchet thimble
- Battery Life: 2.4 Years
- No data output
- Inch-mm conversion
- Hold function
- Auto Power OFF after 20 min non use
- Measuring Spindle: with spindle lock, 6.35mm diameter, spindle pitch 0.5mm
- MPN:293-344-30
- Brand: Mitutoyo
25-50mm (1-2″):
- Range: 25mm-50mm (1-2)
- Resolution: 0.001mm (0.00005)
- Accuracy: 0.001mm (0.00005)
- Flatness: 0.00012mm (0.000012)
- Parallelism: 0.001mm (0.00004)
- IP65 Protected: Waterproof (coolant & dust resistant)
- Carbide measuring faces, micro lap finish
- Ratchet thimble
- Battery Life: 2.4 Years
- No data output
- Inch-mm conversion
- Hold function
- Auto Power OFF after 20 min non use
- Measuring Spindle: with spindle lock, 6.35mm diameter, spindle pitch 0.635mm
- MPN:293-345-30
- Brand: Mitutoyo
50-75mm (2-3″):
- Range: 50-75mm (2-3)
- Resolution: 0.001mm (0.00005)
- Accuracy: 0.001mm (0.00005)
- Flatness: 0.0003mm (0.000012)
- Parallelism: 0.002mm (0.00008)
- IP65 Protected: Waterproof (coolant & dust resistant)
- Carbide measuring faces, micro lap finish
- Thimble and Sleeve scale
- Ratchet thimble
- Hold function
- Measuring Spindle: 6.35mm diameter, spindle pitch 0.635mm
- MPN:293-346-30
75-100mm (3-4″):
- Range: 75-100mm (3-4)
- Resolution: 0.001mm (0.00005)
- Accuracy: 0.002mm (0.0001)
- Flatness: 0.0003mm (0.000012)
- Parallelism: 0.002mm (0.00008)
- IP65 Protected: Waterproof (coolant & dust resistant)
- Carbide measuring faces, micro lap finish
- Thimble and Sleeve scale
- Ratchet thimble
- Hold function
- Measuring Spindle: 6.35mm diameter, spindle pitch 0.635mm
- MPN:293-347-30
- Brand: Mitutoyo
