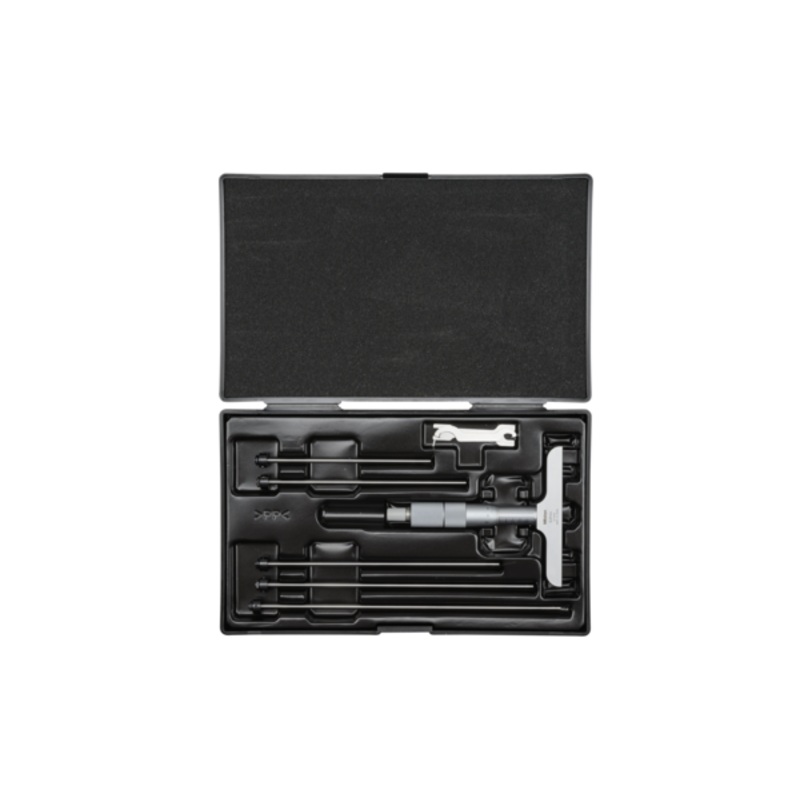

Mitutoyo Depth Micrometer, Interchangeable Rods 0-150mm, 101mm Base 129-116

Original price was: $193.90.Current price is: $96.95.

SKU: TEEZQDR3DuDXP Category:

Description

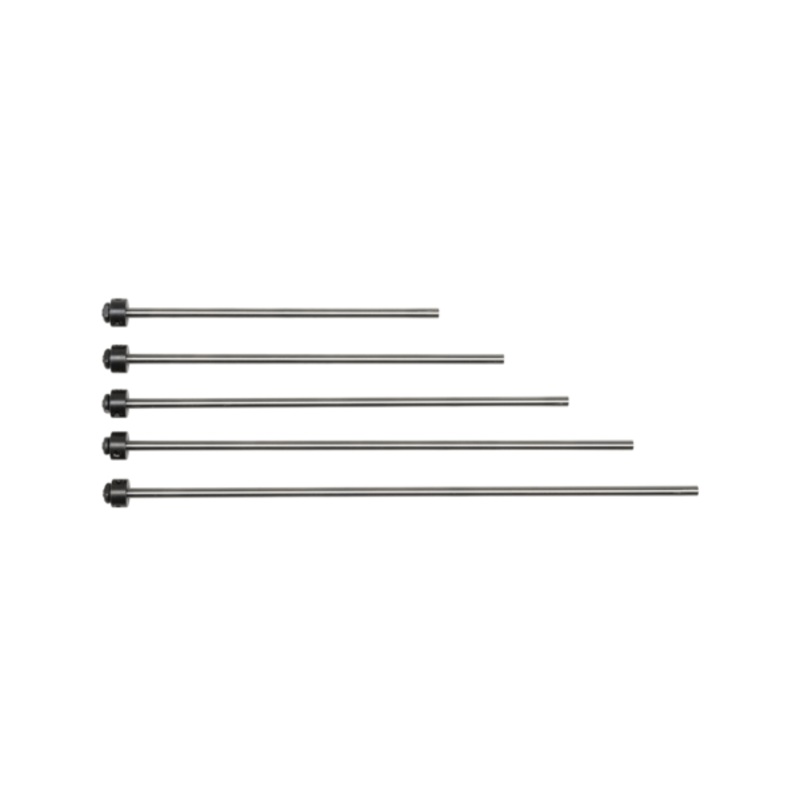

A Mitutoyo non-digital depth micrometer using interchangeable measuring rods to cover a wide measuring range. The 100mm base is made from tool steel, hardened and ground with a micro-lapped reference surface.

Specification

Digital/Analog: Analog

Graduation: 0,01 mm Inch-Metric: Metric

Measuring span: 25 mm

Spindle pitch: 0,5 mm

Micrometer Head Feed (0-25 mm): 3 m

Zero point errors of rods: 4 m

Flatness base: 2 m

Flatness rod: 0,3 m

Parallelism base/rod: 7 m

Measuring face: Hardened, precision ground, micro-lap finish

Base: Hardened tool steel

Number of rods: 6

Scale: Thimble and sleeve satin chrome finish 18 mm

Measuring force: 5-10 N

Delivered: Including box, spanner no. 301336, 04GAA274, hex-spanner no. 202863

Mass: 410 g

Delivered: Including box, spanner no. 301336, 04GAA274, hex-spanner no. 202863

Dimensions
