Name: Mitutoyo 543-854E Digital Indicator ID-F ASME/ANSI/AGD with BS AC-Adapter 0-50mm (0-2)
SKU: TEEgd309KgJVw
Price: 145.00 USD
Availability: InStock

Description

This is a superior multifunction indicator.
The ABSOLUTE Digimatic Indicator ID-F offers you the following benefits:

Bidirectional Digimatic S1 interface
Red/Green LCD backlight provides you with visual GO/NG tolerance judgement
Analogue bar-graph display
MAX/MIN/RANGE (runout value) function with a frequency of 500 times/s
External power supply via AC-Adapter
High accuracy and 0,5 m digital step

Specification

Digital/Analog: Digital

Inch-Metric: Inch/Metric

Delivered: Including spindle lifting handle, AC-adapter, certificate of inspection

Range: 2″/50,8 mm

Digital step: 0.00002″/0.00005″/0.0001″/0.0005″/0.0005 mm/0.0001 mm/0.01 mm

Max. Permissible Error
E MPE (Total Range): 0.00016″/0.004 mm

H MPE (Hysteresis): 0.00008″/0.002 mm

R MPE (Repeatability): 0.00008″/0.002 mm

Measuring force MPL: 2.3 N

Protection: IP30

Type: ASME/ANSI/AGD Standard

Display: LCD with red/green backlight, character height 11 mm

Max. response speed: Unlimited

Measurement frequency (MAX/MIN/RANGE): 500 times/s

Alarm: Setting errors, sensor error, display overflow a.s.o.

Stem : 9.52 mm

Contact point: Carbide ball, thread: No.4-48UNF

Power supply: AC adapter 5,9V, 2A

DATA/HOLD: Yes

Digimatic data output: Yes

Digimatic S1 Bidirectional interface: Yes

ON/OFF: Yes

Analog bar resolution switchable: Yes

Function lock: Yes

GO/NG judgement: Yes

ABS / INC (INC ZERO): Yes

Analog bar resolution selection: Yes

Auto Power OFF setting: Yes

Selectable resolution: Yes

Calculation function (with formula): Yes

Customizing keys: Yes

Counting direction switchable: Yes

Inch/Metric switchable: Yes

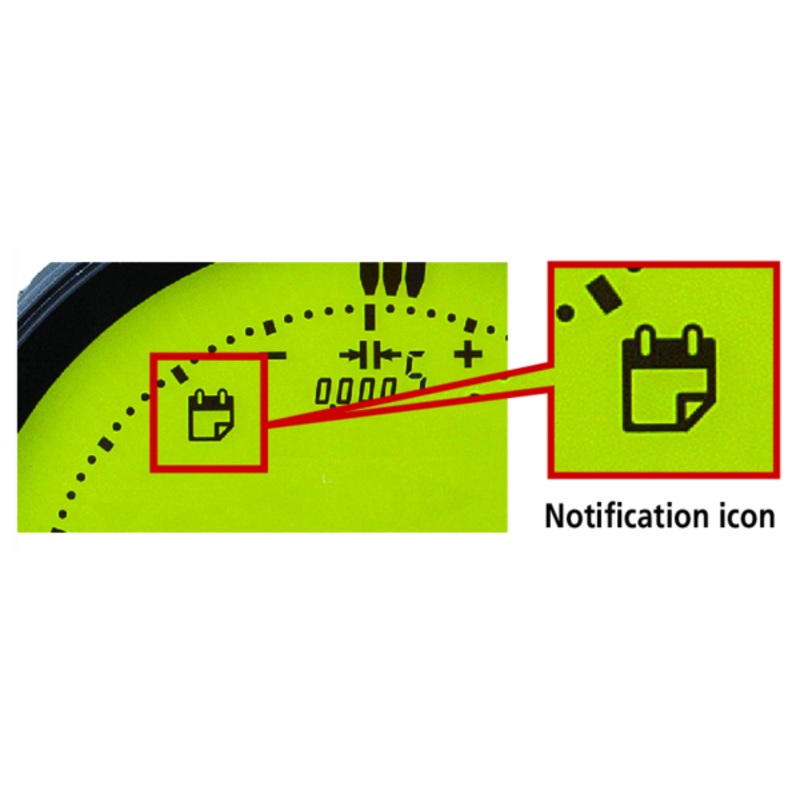

Calibration warning function: Yes

Digital step switchable: Yes

Digital Scale: Electrostatic capacitance type absolute linear encoder

Mass: 330 g

Plunger Direction: Up to the horizontal direction

Mitutoyo 543-854E Digital Indicator ID-F ASME/ANSI/AGD with BS AC-Adapter 0-50mm (0-2)
