Mitutoyo 543-266B – INDICATOR, DIG, .5/12.7MM , ABSOLUTE Digimatic Indicator ID-C, Series 543 – Specially Designed for Bore Gauge Application, Model ID-C112GE 3/8 stem

Original price was: $200.00.Current price is: $100.00.

SKU: TEEdFloKV7Jxe Category:

Description

This indicator is designed for inside diameter measurement applications on bore gauges

It offers the following benefits:

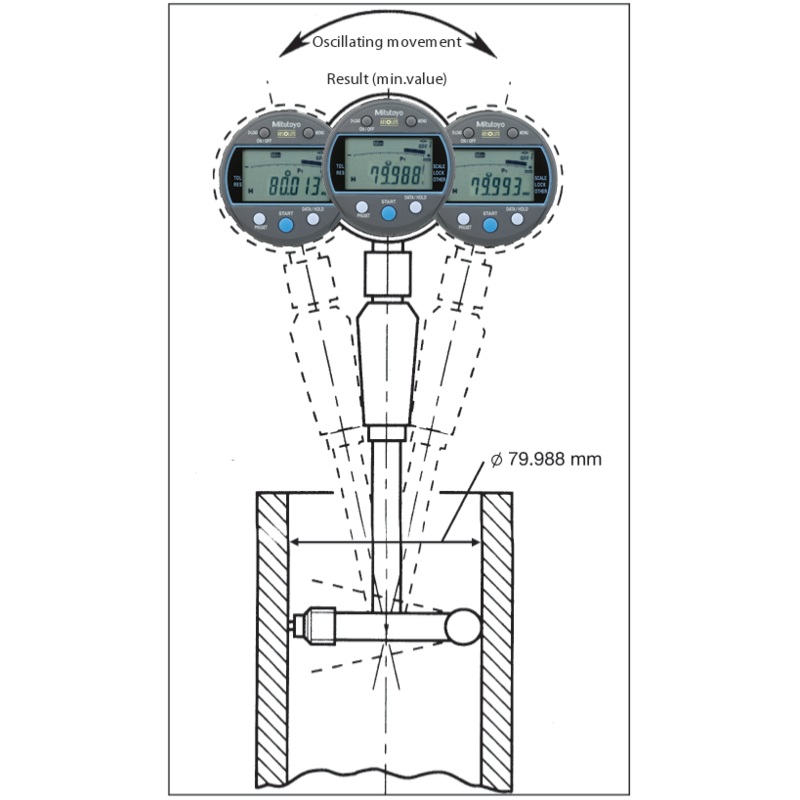

  • Minimum value holding function that allows you to easily detect a hole diameter
  • Analogue bar graph in the display (12 different scales switchable)
  • The analogue bar graph enhances usability by adding a dial gauge feel to digital measurement
  • GO/NG tolerance judgement function
  • A fast measurement frequency mode(detection cycle 20ms or 50times/s) is selectable to measure in the peak detection mode more reliably
  • Easy indicator setup via a setup menu
  • A USB interface box can be used to set up the indicator from PC via dedicated software

Specification

Digital/Analog: Digital

Inch-Metric: Inch/Metric

Delivered: SR44 Batteries

Range: 0.5″/12.7 mm

Digital step: .001mm/.00005″

Max. Permissible Error
E MPE (Total Range): 0.0001″/0.003 mm

H MPE (Hysteresis): 0.0001″/0.002 mm

R MPE (Repeatability): 0.0001″/0.002 mm

Measuring force MPL: 1.5 N

Protection: IP42

Mass: 170 g

Type: EN ISO Standard

Display: LCD, character height 8 mm, 330 rotatable

Max. response speed: Unlimited

Measurement frequency (MAX/MIN/RANGE): Standard mode: 10 times/s
fast mode: 50 times/s
(plunger speed max. 50 m/s for peak measurement)

Alarm: Low voltage, ABS composition error, overflow error, setting error

Stem :9.5mm/3/8″ Contact point: Carbide ball, thread: M2.5×0.45

Power supply: 1 battery CR2032

Battery life: Standard mode: approx. 1 year
fast mode: approx. 4.5 month

DATA/HOLD: Yes

PRESET 3x: Yes

MIN Value Hold: Yes

Digimatic data output: Yes

ON/OFF: Yes

Analog bar resolution switchable: Yes

Function lock: Yes

GO/NG judgement: Yes

Fast measurement mode: Yes

Counting direction switchable: Yes

Inch/Metric switchable: Yes

Digital Scale: Electrostatic capacitance type absolute linear encoder
