Description
A gauge block set with all blocks made of special tool steel, heat treated and aged to give good wear resistance and small secular change. Excellent inter-set wringing properties and will wring to optical flats or gauge blocks made of any other material.

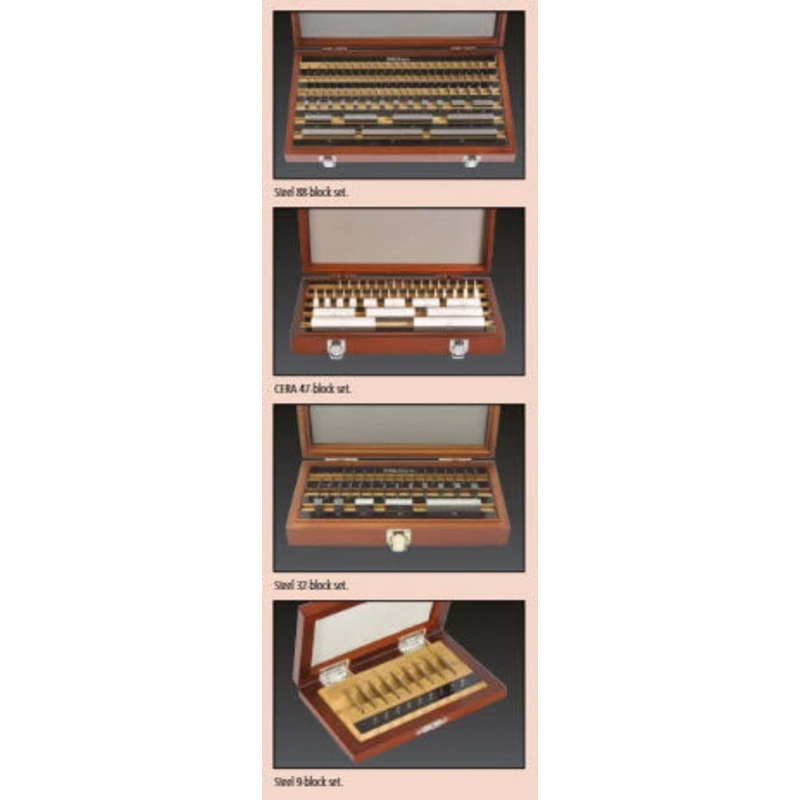

Mitutoyo 516-966-10 Metric 1mm Base Steel Gauge Block Sets 32 Piece Grade 0
Specification
1,01-1,09 mm (0,01 mm step / 9 blocks)
1,1-1,9 mm (0,1 mm step / 9 blocks)
1-9 mm (1 mm step / 9 blocks)
10-30 mm (10 mm step / 3 blocks)
60 mm (1 block)
