Mitutoyo 516-106-10 Micrometer Check Set Description : Mitutoyo Micrometer Check set Metric Gauge Blocks : 2.5mm 5.1mm 7.7mm 10.3mm 12.9mm 15.0mm 17.6mm 20.2mm 22.8mm 25.0mm. Accuracy : Grade 0 Optical Parallel : 30mm diameter
Product image
-70%
Product image
Product image

Mitutoyo 516-106-10 Micrometer Check Set Description : Mitutoyo Micrometer Check set Metric Gauge Blocks : 2.5mm 5.1mm 7.7mm 10.3mm 12.9mm 15.0mm 17.6mm 20.2mm 22.8mm 25.0mm. Accuracy : Grade 0 Optical Parallel : 30mm diameter

Original price was: $453.60.Current price is: $136.08.

SKU: TEEYF5MGTbG2n Category:

Description

A Mitutoyo outside micrometer test set comprising ten gauge blocks for testing accuracy throughout measuring stroke and an optical parallel for testing contact face flatness and parallelism.

Specification

Inch-Metric: Metric

Type of Certificate: Inspection certificate

Delivered: In a wooden case with certificate of inspection (Gauge Blocks only)

Accuracy: EN ISO 3650

Grade: 0

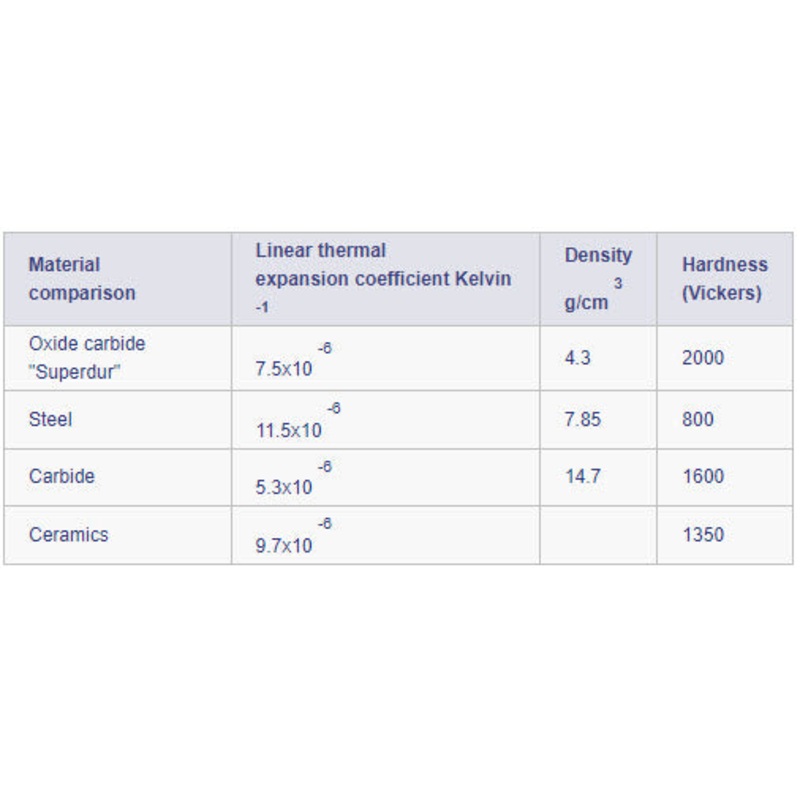

Material: Steel

Calibration/Standard applications: EN ISO 3611
DIN 863 (1999)
VDI/VDE/DGQ 2618

Set configuration: 2,5, 5,1, 7,7, 10,3, 12,9, 15, 17,6, 20,2, 22,8, 25 mm, Optical parallel (t = 12 mm)

Delivered: In a wooden case with certificate (Gauge Blocks only)

Mass: 1000g
