Description
- Range: 0-25mm (0-1)
- Resolution: 0.001mm (0.00005)
- Accuracy: 0.003mm (0.00015)
- Parallelism: 0.003mm (0.00015)
- Type A
- Ratchet stop for constant measuring force
- Scale: Thimble and sleeve satin chrome finish, 18mm diameter
- With spindle lock: 6.35 mm diameter, spindle pitch 0.635 mm
- SPC Data Output
- Hold function

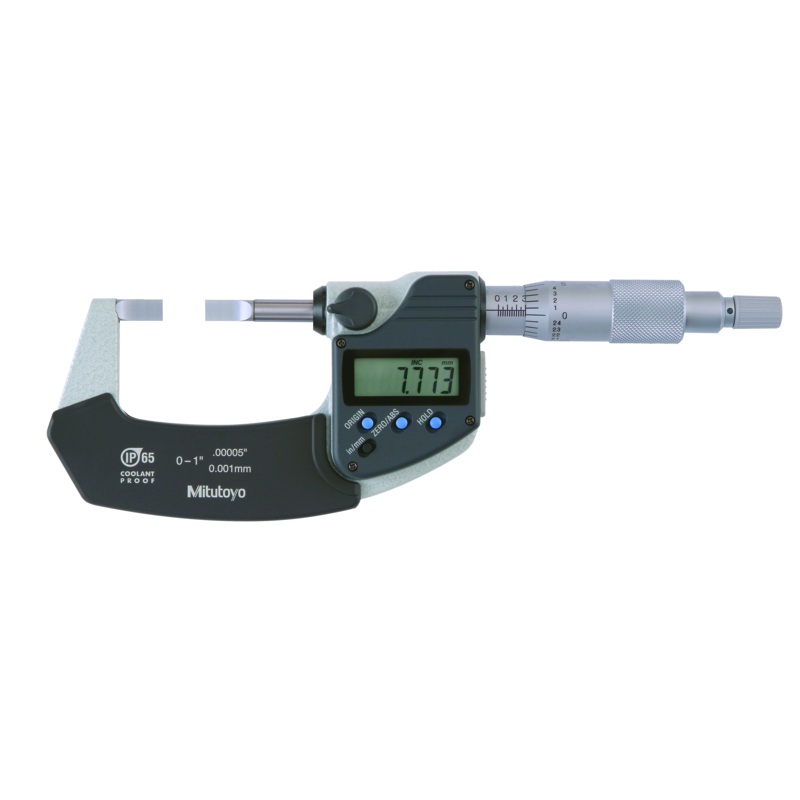

This Digimatic Blade Micrometer is designed to help you measure hard-to-reach features. It offers the following benefits:
- Blade-shaped anvil and spindle for measuring the groove diameter of shafts, keyways and other hard-to reach features
- Non-rotating spindle
