Description
Micrometer Features:
- Range: 0-25mm (0-1)
- Resolution: 0.0001mm (0.000005)
- Accuracy: 0.0005mm (0.00002)
- Flatness: 0.0003mm (0.000012)
- Parallelism: 0.0006mm (0.00002)
- Measuring Surface: 3.2mm Diameter
- Measuring Force: 7-9N
- Electromagnetic induction type BS rotary sensor
- Battery Life: 2.4 Years
- Data output
- Inch-mm conversion
- Hold function
- Auto Power OFF after 20 min non use
- Measuring Spindle: with spindle lock, 6.35mm diameter, spindle pitch 0.635mm
- MPN:293-130-10
- Brand: Mitutoyo
Description:

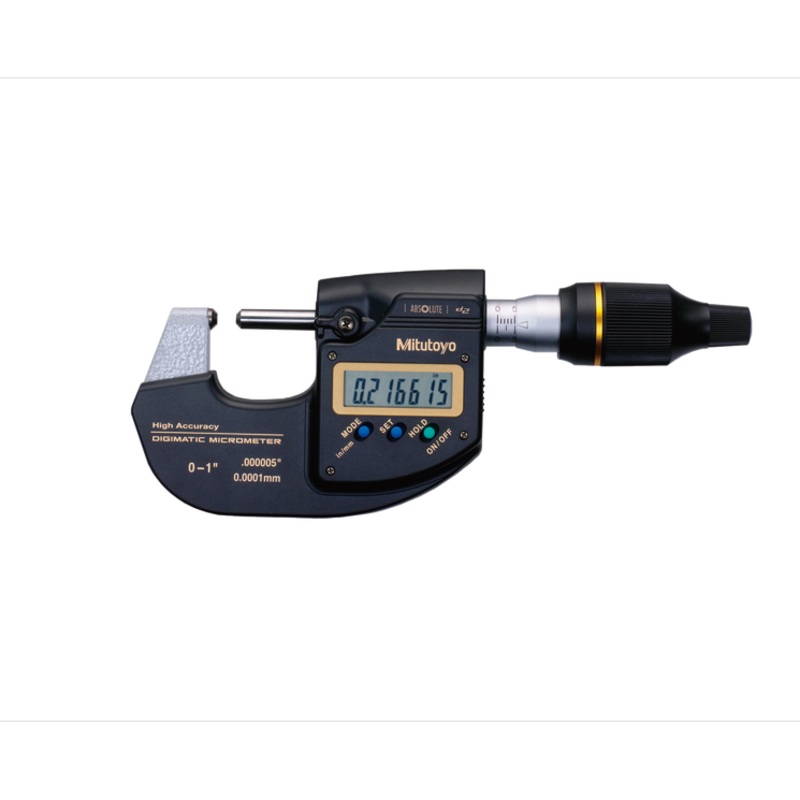

This Micrometer enables 0.1 m resolution measurements and is ideal for customers who need to make highly accurate measurements with a hand-held tool (such as Gauge R & R analysis).
The Absolute High-Accuracy Micrometer offers the following benefits:
- It delivers higher accuracy without sacrificing operability, by using Mitutoyos innovative 0.1 m resolution ABS (absolute) rotary
sensor and high accuracy screw machining technology which
reduces instrumental error to just 0.5 m. - Its highly rigid frame and high-performance constant-force
mechanism (7-9 N) enable more stable measurement.
