Description
- Measuring range: 16 mm
- Traverse: 17.5 mm
- Measuring speed: 0.25 mm/s, 0.5 mm/s, 0.75 mm/s
- Measuring method: Differential inductance
- Range: 360 m
- Stylus: Diamond Tip
- Skid radius: 40 mm
- Profiles: Roughness Profile (R), R-Motif, DF-Profile and more
- Roughness standard: EN ISO, VDA, JIS, ANSI and customize settings
- Digital filter: Gauss, 2CR75, PC75
- Cut-off length: c : 0.08 mm; 0.25 mm; 0.8 mm; 2.5 mm s : 2.5 m; 8 m
- Tolerance: Coloured upper / lower limit
- Power supply: AC adapter or rechargeable battery
- MPN:178-561-12E
- Brand: Mitutoyo
-

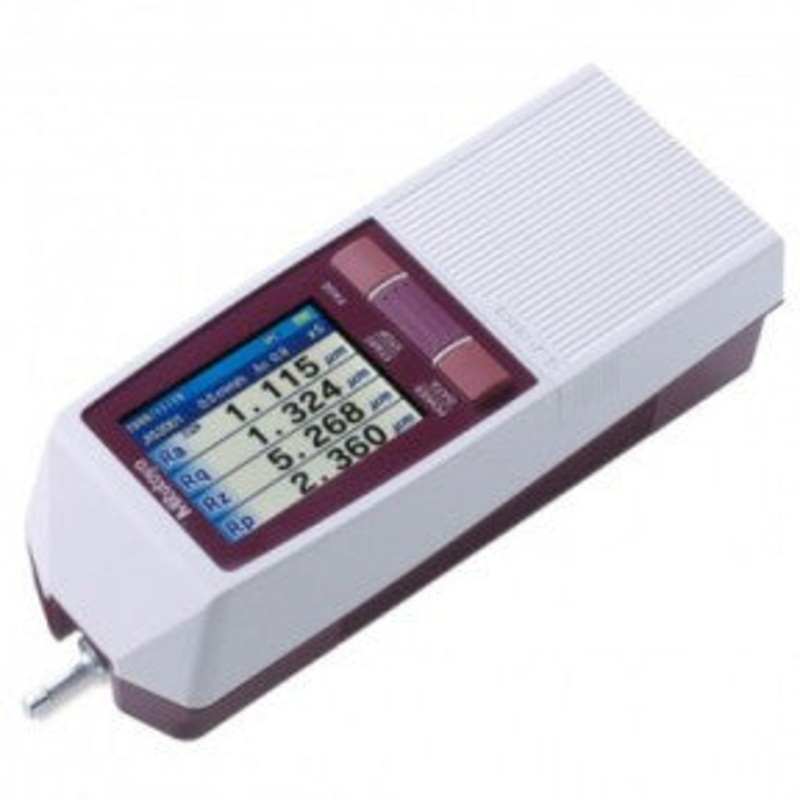

The Surftest SJ-210 offers you the following benefits:
- Skid system gives you user friendly and intuitive menu navigation
- It works independently of mains power, allowing you to make on-site measurements
- The 6.0 cm [2.4] colour graphic, back-lit LCD gives you excellent readability
- It performs roughness analyses conform to various international standards (EN ISO, VDA, ANSI, JIS) and customized settings
- Different drivers are available to expand the range of applications
- Calculation results, assessed profiles, bearing and amplitude curves can be displayed
- Support of 21 languages
- Operation by keys on the front and under the sliding cover
