Description

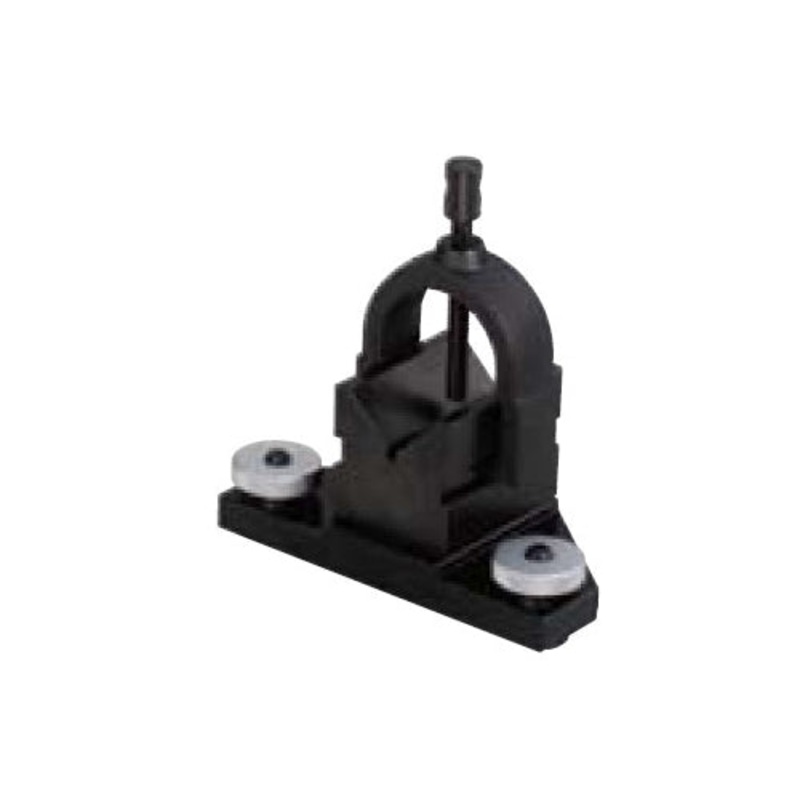

Mitutoyo MF series microscope v-block with clamp. For use with Mitutoyo MF C, MF-U C, MF D, MF-U D microscopes.

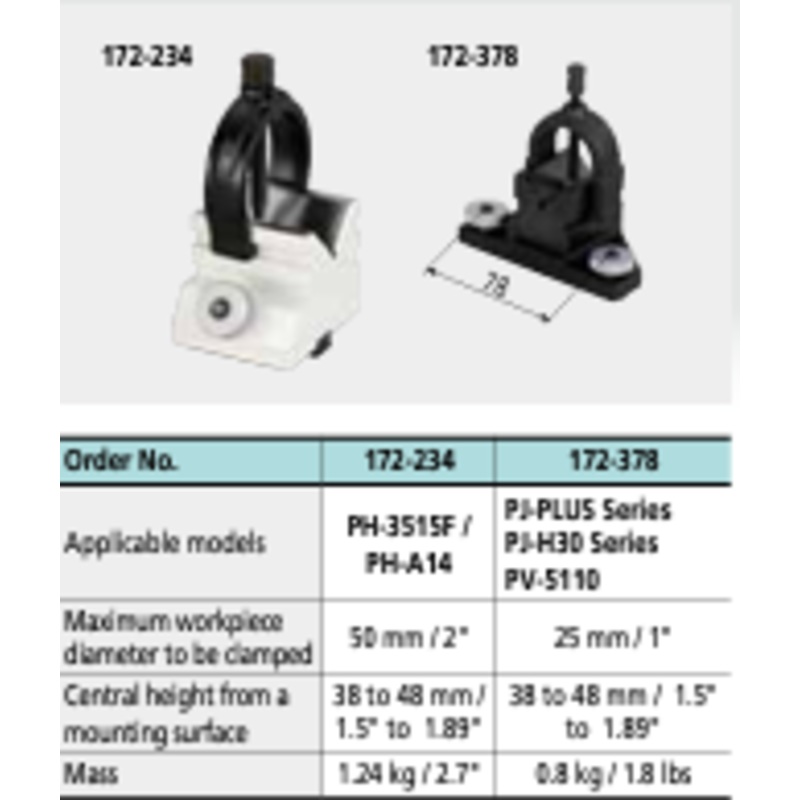

- Maximum workpiece clamping diameter = 0.98″ (25mm)
- Height from the mounting surface to center = 38-48mm
- Dimensions = 117mm H x 90mm W x 45mm D
- Mass = 1.76lbx (0.8kg)
Mitutoyo part # = 172-378
