Description

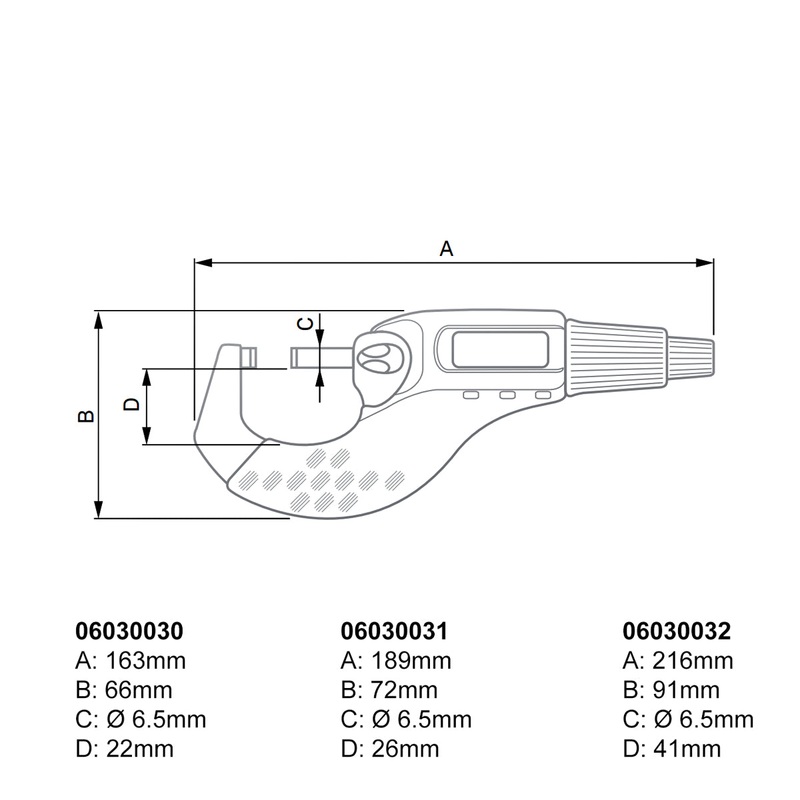

Set of 3 digital external micrometers, 0-75 mm, MICROMASTER RS IP54 06030029
TESA MICROMASTER. Electronic Micrometers with Digital Display.
With patented TESA capa system
Large easy-to-read digital display
IP54
Specification
| Measuring force |
10 N |
| Units |
mm / in |
| Standard |
DIN 863 T1 |
| Resolution |
0,001 mm / .00005 in |
| Zero |
Floating |
| Material |
Inserts: tungsten carbide |
| Thread pitch |
0,5 mm |
| Degree of protection |
IP54 IP40 (with opto-RS232) |
| Display |
LCD Digit size: 7 mm |
| Power supply |
CR2032 button battery |
| Function(s) |
Standby after 10 min Display locking (except EASY) |
| Autonomy |
2’000 4’000 hours |
| Included in delivery |
Battery (1x) Measuring report Declaration of conformity |
| Data output(s) |
With opto-RS232 |
All images are for representation only.
