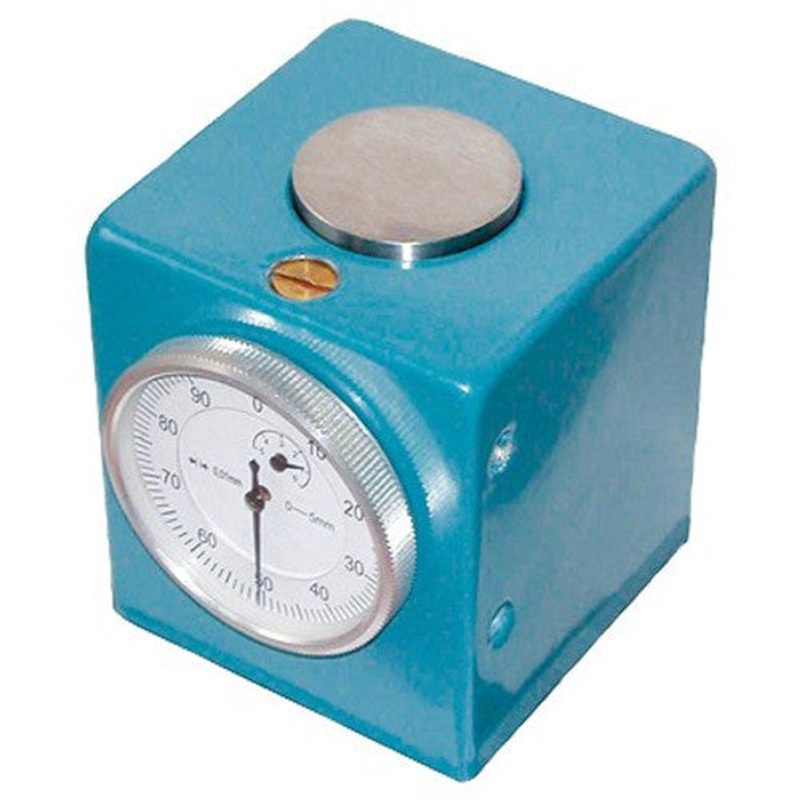

MHC 805-4001 Z Axis Setter-Square Body Height 50mm, Grad.0.01mm

Description

• Precision mechanical zero-setting instruments for CNC machine centres. Direct establishing of 0 points eliminates the need of several approaches. Positive alignment of zero position with easy reading precision indicator.
• Manufacturer Part Number 805-4001 Additional Information Spring loaded setting face to safeguard against damage from overrun. Positioning accuracy and repeatability .01mm Graduation .01mm Features & Benefits Precision mechanical zero-setting instruments for CNC machine centres
  Direct establishing of 0 points eliminates the need of several approaches
  Positive alignment of zero position with easy reading precision indicator
  Graduation: 0.01mm
  Spring loaded setting face to safeguard against damage from overrun
  Positioning accuracy and repeatability 0.01mm
  Dimensions: Lx37mm Wx37mm Hx50mm Width (mm) 37 Length (mm) 37
