Description
Only Low-Pressure Model Available (MEGR-1133L)
BULK ORDERS AND LESS COMMON PRODUCTS MAY REQUIRE ADDITIONAL TIME FOR SHIPMENT.CONTACT USVIA PHONE OREMAILTO REQUEST MORE INFORMATION ON AVAILABILITY AND OTHER PRODUCT OPTIONS.
MORE OPTIONS AVAILABLE. PLEASE CALL OR EMAIL US FOR FURTHER INFORMATION

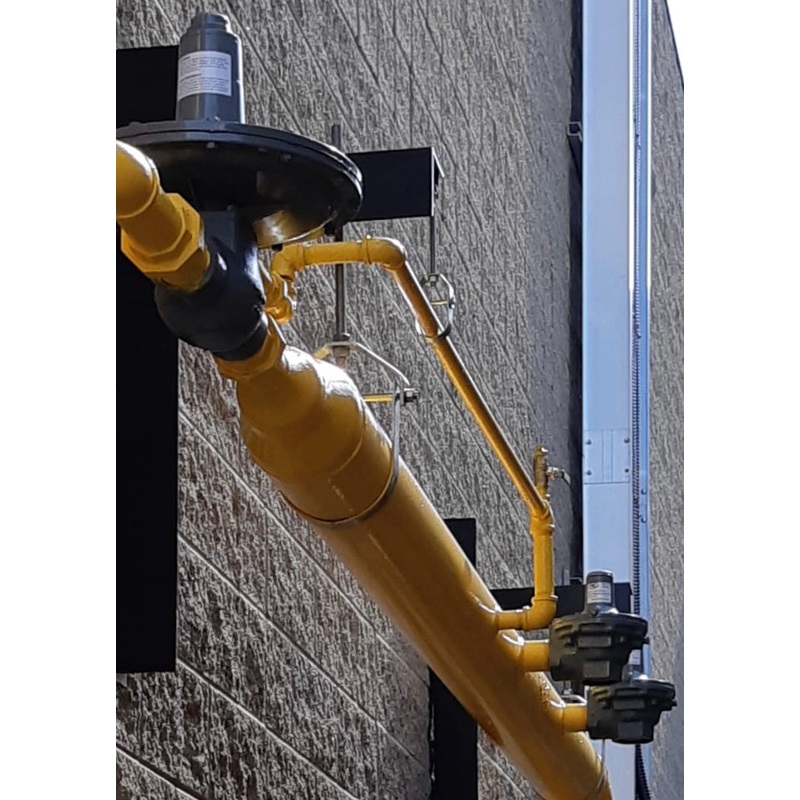

The MEGR-1133 Series Second Stage / Industrial regulators are large capacity, self-operated, low- or high-pressure units for use in applications with loads up to 110,000,000 BTU/H capacity. These regulators are best suited for industrial applications where high flow capacity and a downstream monitor control line is required
Type: Adjustable/PSI/WC
Orifice Diameter: 2
Orifice Material: Aluminum
Max. Inlet Pressure:60 PSI
Regulator Spring: Steel
Stem Guide/Disk Holder: Aluminum
Valve Stem:Aluminum
Exterior Finish: Gray Powder Coat
Diaphragm: Fabric Reinforced Nitrile (NBR)
Body Material: Iron
Bonnet Cap & Bonnet: Aluminum
Port Orientation:
Features:
- Suitable for monitoring
- Balanced supply valve
- Wide pressure range offering
Applications:
- Industrial and commercial gas regulation
- Compressors
- Gas engines
- Natural gas and propane gas regulation
Parts / Accessories:
- Marshall Excelsior Spring for 1133 and S1202 Gas Pressure Regulator
- Marshall Excelsior 1133 Orifice (with O-Ring)
- Marshall Excelsior 1133 Valve-Disk Assembly
- Marshall Excelsior 1133 Restrictor Collar
Resources:
- Marshall Excelsior MEGR-1133 Bulletin
- Marshall Excelsior MEGR-1133 Installation Instructions
- Marshall Excelsior MEGR-1133 Flow Charts
Click to see 1133L Flow Capacities
Click to see 1133H Flow Capacities
