Description

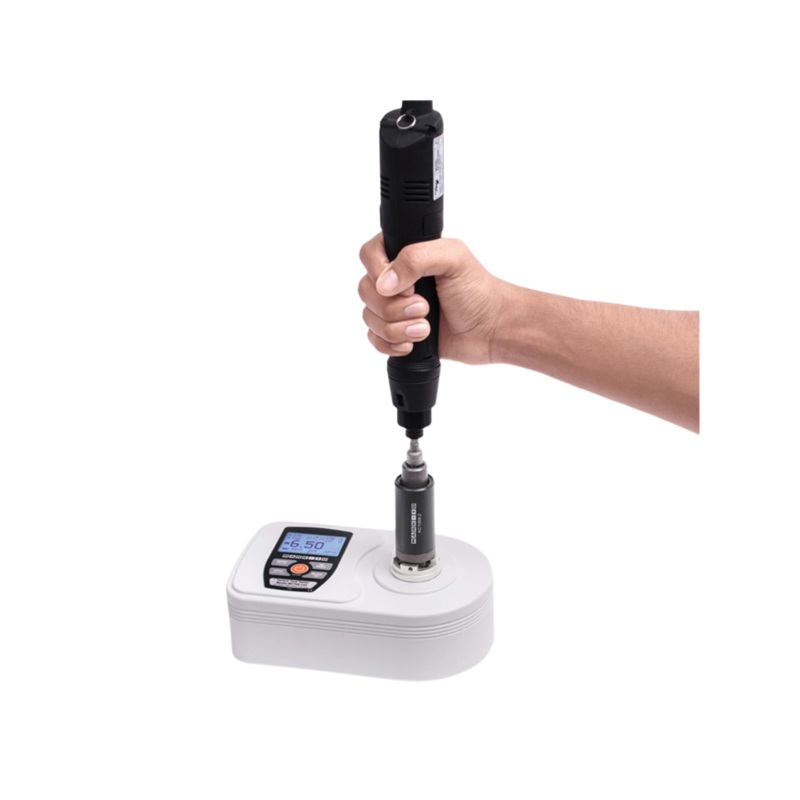

Series TT02 Torque Tool Tester
Series TT02 Torque Tool Testers present a simple and accurate solution for testing manual, electric, and pneumatic torque screwdrivers, wrenches, and other tools. These testers are compact and rugged, suitable for production environments. A universal 3/8 square receptacle accepts common bits and attachments. The TT02 captures peak torque in both measurement directions, and also calculates 1st and 2nd peaks, useful for click-type tools. A blazingly fast sampling rate of 7,000 Hz and accuracy of 0.3% produce reliable and consistent test results. The TT02 includes a range of sophisticated productivity-enhancing features, including USB, RS-232, Mitutoyo, and analogue outputs, automatic data output/zeroing/data storage upon tool slip or click, memory storage for 1,000 readings, pass/fail indicators and outputs, and more. Password protection is provided to prevent unauthorized changes to settings and calibration. Series TT02 testers include MESUR Lite data acquisition software. MESUR Lite tabulates continuous or single point data. Data stored in the TT02s memory can also be downloaded in bulk. One-click export to Excel allows for further data manipulation. Note: Not for use with impact tools.
Specifications
- Accuracy: 0.3% of full scale
- Sampling rate: 7,000 Hz
- Power: AC or rechargeable battery. Multi-step low battery indicator is displayed, tester shuts off automatically when power is too low.
- Battery life: Backlight on: up to 7 hours of continuous use
- Backlight off: up to 24 hours of continuous use
- Measurement units: ozFin, lbFin, kgFcm, Nm, Ncm
- Output: USB / RS-232: Configurable up to 115,200 baud.
- Mitutoyo (Digimatic): Serial BCD suitable for all Mitutoyo SPC-compatible devices.
- Analog: 1 VDC, 0.25% of full scale at capacity,
- General purpose: Three open drain outputs, one input.
- Set points: Three open drain lines.
- Configurable settings: 1st/2nd peak, digital filters, outputs, automatic shutoff, default settings, key tones, backlight, audio alarms, passwords, calibration
- Safe overload: 150% of full scale (display shows OVER at 110% and above)
- Weight: 5.8 lb [2.6 kg]
- Shipping weight: 9 lb [4.1 kg]
- Environmental requirements: 40F 100F [5C 45C], < 96% humidity (non-condensing)
- Warranty: 3 years (see individual statement for further details)
In the Box
- Series TT02 torque testers include the following accessories:
- (1) 1/4 hex to 3/8 square adapter
- (1) USB cable
- (1) AC adapter
- (1) Battery
- (1) Resource CD
- (1) Certificate of calibration without data
All images are for representation only.
