Description
Model M3I PLUG & TEST INDICATORS & SENSORS

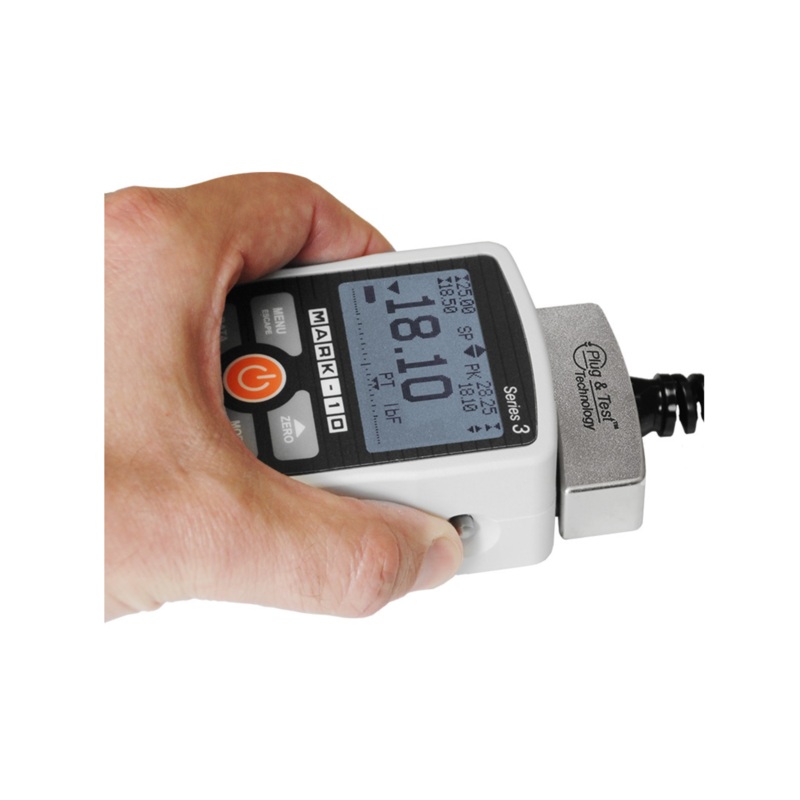

Basic Force / Torque Indicator
The M3I digital force / torque indicator is designed to work with a wide range of Mark-10 remote force and torque sensors. With exclusive Plug & Test technology, all calibration and configuration data is saved within the sensors smart connector, not the indicator, allowing for true interchangeability. In addition, all sensors are fully compatible with other Mark-10 indicators. The M3I shares its menu structure and most specifications with Series 3 digital force gauges. The sampling rate is 2,000 Hz, producing accurate results under a wide range of test conditions. A backlit graphic LCD displays large characters, and a menu is available to access the gauges features and configurable parameters. The display also features an analogue load bar for graphical representation of applied load, as well as set point indicators for pass-fail testing. USB output is provided for data collection purposes. The M3I includes MESURLite data acquisition software, for tabulation of continuous or individual data points. One-click export to Excel allows for further data manipulation.
In The Box:
The M3I Force / Torque Indicator is shipped includes the following accessories:
- (1) Carrying case
- (1) USB cable
- (1) AC adapter
- (1) Battery
- (1) Certificate of calibration without data Force and torque sensors are available separately.
All images are for representation only.
