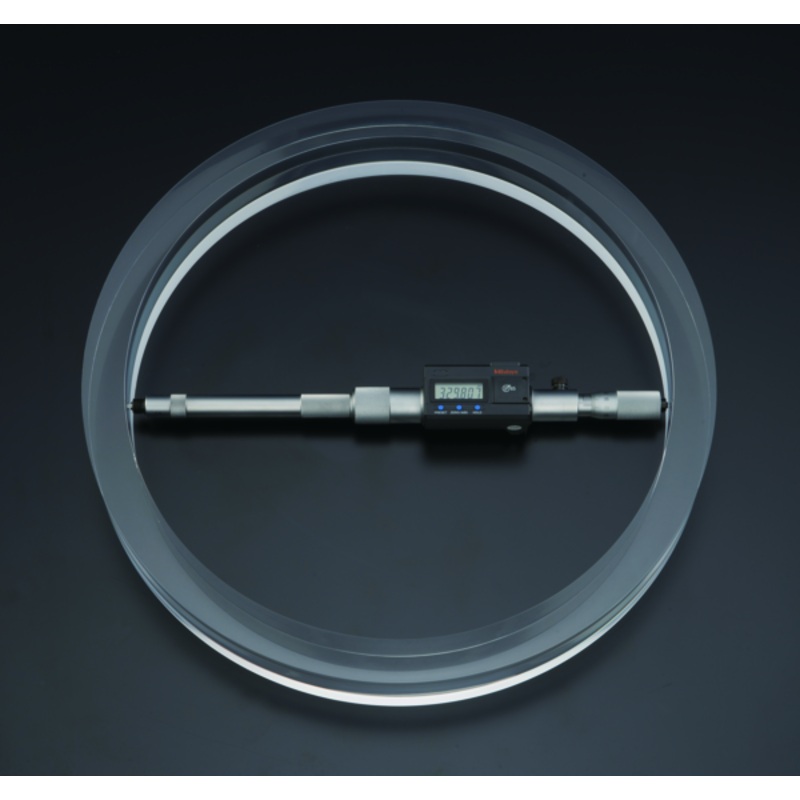

Name: Main Unit for Tubular Inside Micrometer 339-102
SKU: TEEEqTdg9k4bC
Price: 148.00 USD
Availability: InStock

Description

This is an extension pipe type inside micrometer that offers you the following benefits:

Interchangeable extensions in a hollow pipe design.
Carbide measuring faces.
Digimatic type with data output.
It has excellent resistance against water and dust (IP65 protection level) enabling you to use it in machining situations that include splashing coolant fluid.

Specification

Digital/Analog: Digital

Inch-Metric: Inch/Metric

Range: 8 – 9 “

Measuring span: 25 mm

Digital step: 0,001 mm

Scale: Thimble and sleeve satin chrome finish, 18 mm

Display: LCD, character height 7.5 mm

Measuring spindle: Spindle pitch 0,5 mm

Measuring face: Carbide

Extension: 17 mm

Extension rods: –

Power supply: 1 battery SR-44

Battery life: Approx. 1,5 years under normal use

Delivered: Including box, key, 1 battery, extensions, micrometer head

DATA/HOLD: Yes

ABS / INC (INC ZERO): Yes

Auto Power OFF after 20 min. non use: Yes

Low voltage alarm: Yes

Function lock: Yes

2 x PRESET: Yes

Delivered: Including box, spanner (301336/04GAA274), screwdriver (05CAA952), 1 SR44 battery

Spindle feed error: 0.00015 inch

Data output: Yes

Mass: 440 g

Main Unit for Tubular Inside Micrometer 339-102
