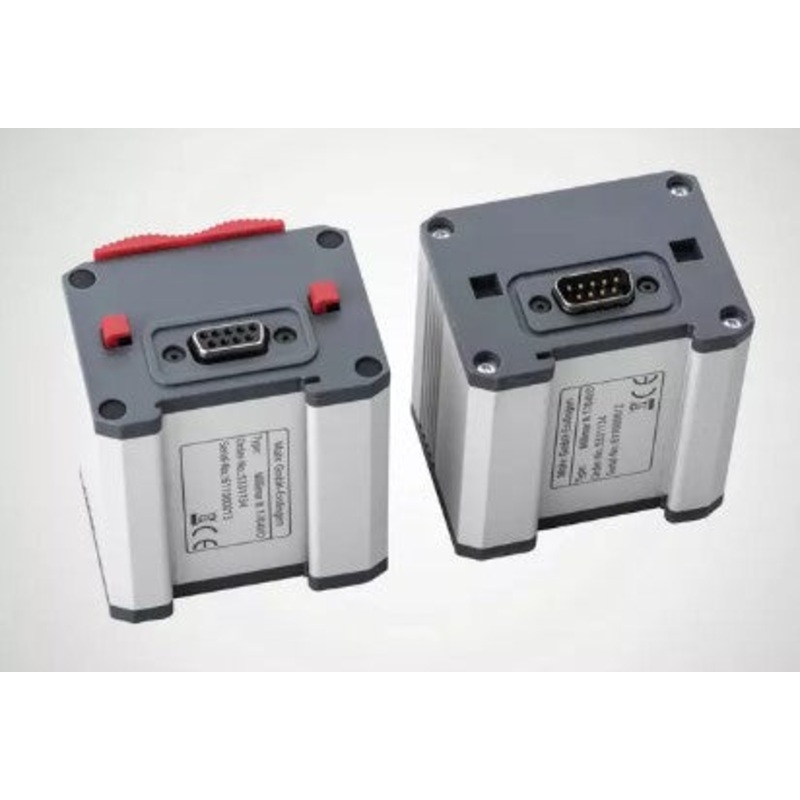

Mahr Module for Inductive Probes Millimar N 1702 M-HR

Description

• Flexibly configurable RS-485 bus modules
• Powerful connection modules for evaluating measuring sensors (inductive)
• High resolution of measuring signal, 0.01 m
• Synchronous data retrieval from multiple connected measuring probes
• Connection of N 1700 modules via USB interface to the smart, universal evaluation and configuration software Millimar Cockpit
• Connects all compatible probe types using one module
• Flexible and modular product combinations to tackle customer-specific measuring tasks
• Maximum theoretical bus data rate of 4189 values/s (depending on the number of connected channels)

Product type N 1702 M-HR Current consumption 115mA Resolution m 0,01 Measuring range, inductive probe 200 Probe inputs 2 Compatibility Mahr , Mahr 1340 , Mahr half-bridge , Mahr LVDT , Mahr VLDT Configuration Millimar Cockpit Software Data transmission rate 4189Hz Error limit 0,3 % (min. 0,04 m) Data interface RS-485 Energy supply + 5V from N 1700 Bus IP protection category IP 42 Working temperature MIN 10C Working temperature MAX 35C Operating temperature from 0C Operating temperature up to 40C Temperature coefficient 0.02m/C Product weight 0.27kg
