Mahr Millimess Maxm II Inductive Digital Comparator: Range 1 mm, Selectable Resolution

Description

• Inductive digital comparator Millimess Maxm II
• IP protection category: IP 54
• Data interface: Digimatic, Opto RS-232C, USB
• Data output Maxm:
• Factory standard
• Measuring span in mm: 1 mm
• Resolution: 0.0002, 0.0005, 0.001, 0.002, 0.005, 0.01, 0.02
• Resolution inches: .00001″, .00002″, .00005″, .0001″, .0002″, .0005″, .001″
• Clamping shaft: x
• Package contains: instruction manual, battery

• Inductive absolute measuring system
• Large, high-contrast display with numerical and scale display
• Operating and display unit can be rotated 270
• Zero point setting is retained even after switching off the dial indicator

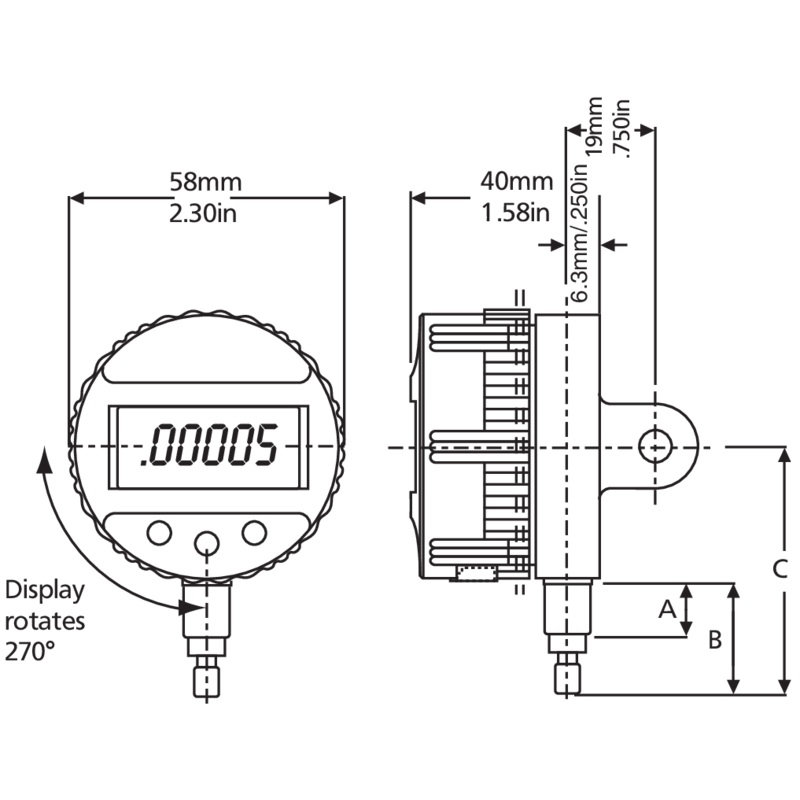

Measuring range mm 1 Product type Maxm II Measuring range inches .040″ Measuring range 1 _beginning_ mm -0.5mm Measuring range 1 _end mm 0.5mm Standard Factory standard Measuring range 1 _beginning_inch -0.02inch Measuring range 1 _end inch 0.02inch IP protection category IP 54 Resolution 0.0002 mm , 0.0005 mm , 0.001 mm , 0.002 mm , 0.005 mm , 0.01 mm , 0.02 mm Battery type CR 2450N (3V Lithium) Resolution (mm) 0.0002mm Resolution 0.00001 inch , 0.00002 inch , 0.00005 inch , 0.0001 inch , 0.0002 inch , 0.0005 inch , 0.001 inch Resolution (inches) 1.0E-5inch Measuring force from 0.8N Measuring force up to 1.1N Height of digits 8mm Dimensions a 38 mm | b 57.2 mm | c 86.6 mm |
