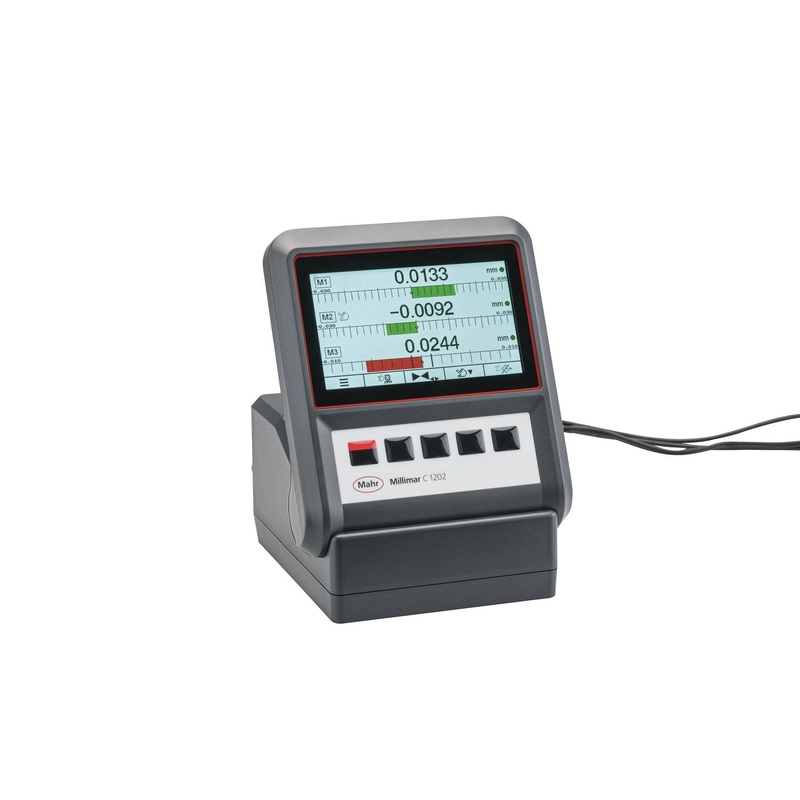

Mahr Millimar C 1202 Metric/Inch Version Compact Amplifier

Description

• Versatility for a wide range of measuring tasks
• Interchangeable N 1700 modules as measuring channels for inductive and
  incremental probes or for pneumatic measuring equipment.
• Perfect display thanks to high resolution and high contrast color screen
• Fully adjustable display for ideal viewing angle
• Variable display of measuring values, either as anumber, pointer or bars
• 1 – 3 features can be displayed at once
• Extremely easy to operate
• Programmable switching input to control the measuring routine
• Flexible, multiple measuring tasks can be stored on the memory card.
• Compact housing
• Suitable for wall mounting

Product type C 1202 Metric/Inch version Range of digital display m 999 999.9 Range of analog display m 5000 , 2000 , 1000 , 300 , 100 , 30 , 10 , 3 Resolution m 0,01 , 0,1 , 1 Graduation mm 500 , 200 , 100 , 20 , 10 , 2 , 1 , 0,2 Graduation value inches .019″ , .007″ , .002″ , .001″ , .0002” , .0001” , .00002” , .00001” Display TFT color display, 110 mm (4.3″), 480 x 272 pixels Refresh rate 30fps Probe inputs 2ber N 1700 Module Compatibility Millimar N 1700 Measuring combination +A, -A, +B, -B, A+B, +A-B, -A+B, -A-B Features 3 Test steps 1 Dynamic functions Max, Min, TIR (Max-Min), (Max+Min)/2, Average Configuration Keyboard Data transmission rate 30Hz Error limit, digital display 0.3% (min. 0.2 m);
0.3% (min. 0.04 m)*
* (with N 1702 M-HR) Error limit, analog display 0.25% of the end scale value / 0.3% of the displayed value Data interface USB , Digimatic Hardware interfaces USB , Digimatic , Control input , RS-485 , Micro SD slot for SD / SDHC cards up to 32 GB Control inputs Control input programmable
(functions and function sequences) Control outputs 4 Steuerausgnge ber N 1704 I/O Energy supply Power source , 230 V/115 V; 50/60 Hz IP protection category IP 42 Working temperature MIN 10C Working temperature MAX 35C Operating temperature from 0C Operating temperature up to 40C Range of digital display inch 39″ Range of analog display inches .19″ , .07″ , .03” , .01” , .003” , .001” , .0004″ , .0001”
