Mahr Micromar 45 T Depth Micrometer 0-100 mm

-59%

Mahr Micromar 45 T Depth Micrometer 0-100 mm

Original price was: $357.30.Current price is: $145.00.

SKU: 4180000.0 Category: Depth Micrometers/Gauges

Description

Description

Operating and display units with satin chrome finish
Stainless spindle is hardened throughout and ground
Rapid drive with integrated ratchet
Depth measurement
Measuring the space between grooves and groove widths in conjunction with a disc anvil 45 Tm

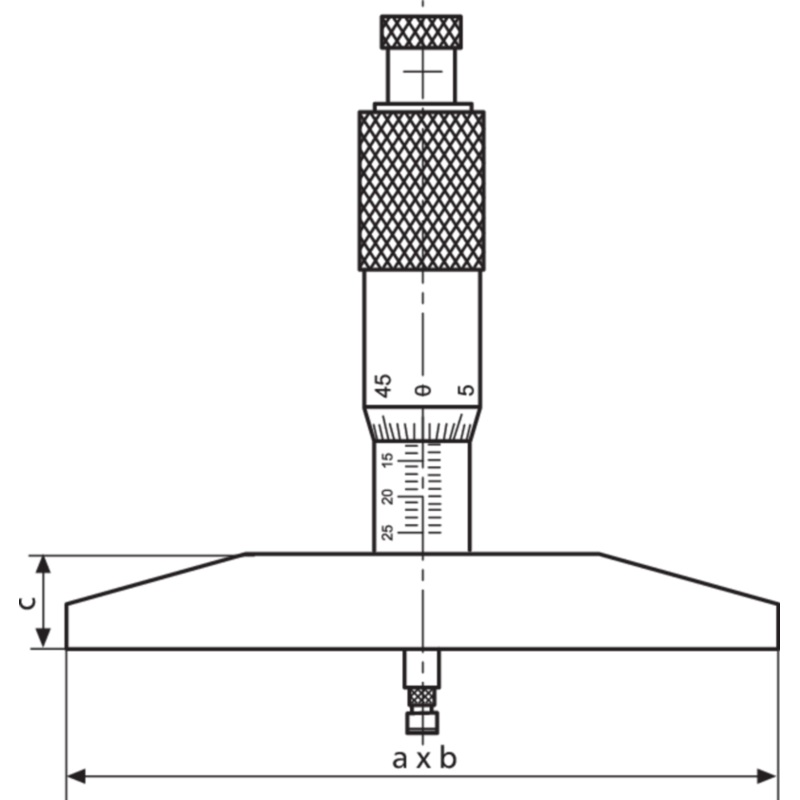

Standard Factory standard Measuring range mm 0 – 100 Graduation value mm 0,01 Error limit m 5m Notes error limit Length tolerance of the extension +/-1,5 m Spindle diameter 4mm Spindle thread pitch_mm 0.5mm Dimensions a 100 mm | b 16 mm | c 13 mm |
