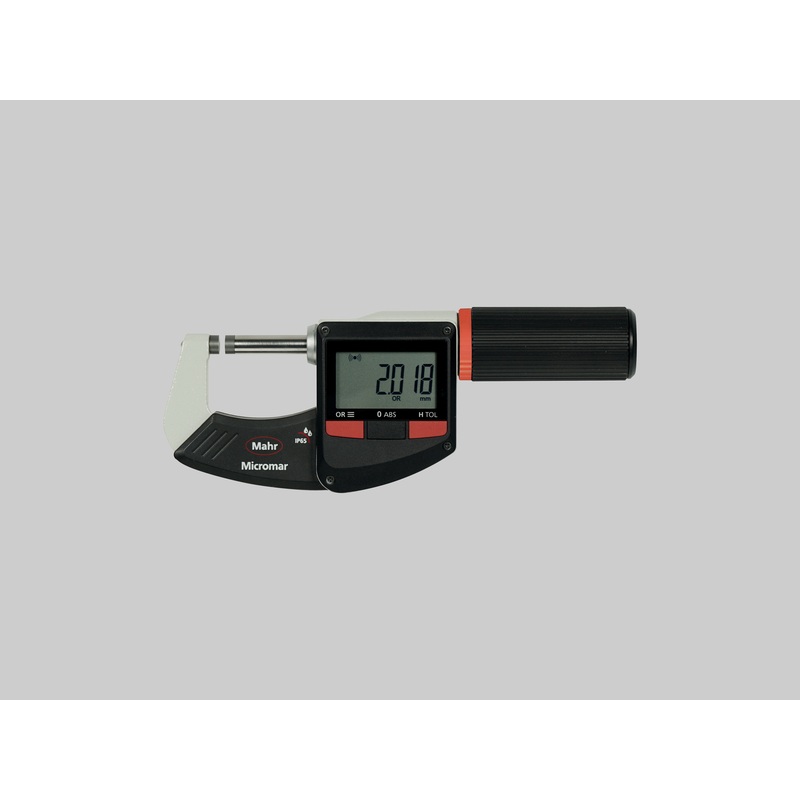

Mahr Micromar 40 EWRi-L IP65 Wireless Digital Micrometer 0-25mm/0-1

Description

• Avoiding workpiece damage: The non-rotating spindle has a touching touch, which prevents scratch marks on sensitive and finely machined surfaces
• Ideal for measuring thin metal foils without twisting and bending them
• Thread flank measurement by using thread wires: Both wire holders always remain in the engaged position with the non-rotating spindle
• High contrast digit display
• Stainless spindle is hardened throughout and ground
• Spindle and anvil are carbide-tipped
• QUICK DRIVE
• Sliding spindle
• Ratchet is integrated in the thimble
• Lacquered steel frame, heat insulated

Standard Factory standard Measuring range mm 0 – 25 Measuring range inch 0 – 1″ Material Contact surface carbide Resolution mm/inch 0.001 / .00005″ Error limit m 2m Battery type CR 2032 (3V Lithium) Parallel error in m 2m Flatness in m 0.6m Spindle diameter 6.5mm Spindle thread pitch_mm 5mm Measuring force (N) 5 – 10 Dimensions a 24 mm | b 9.5 mm | c 32 mm |
