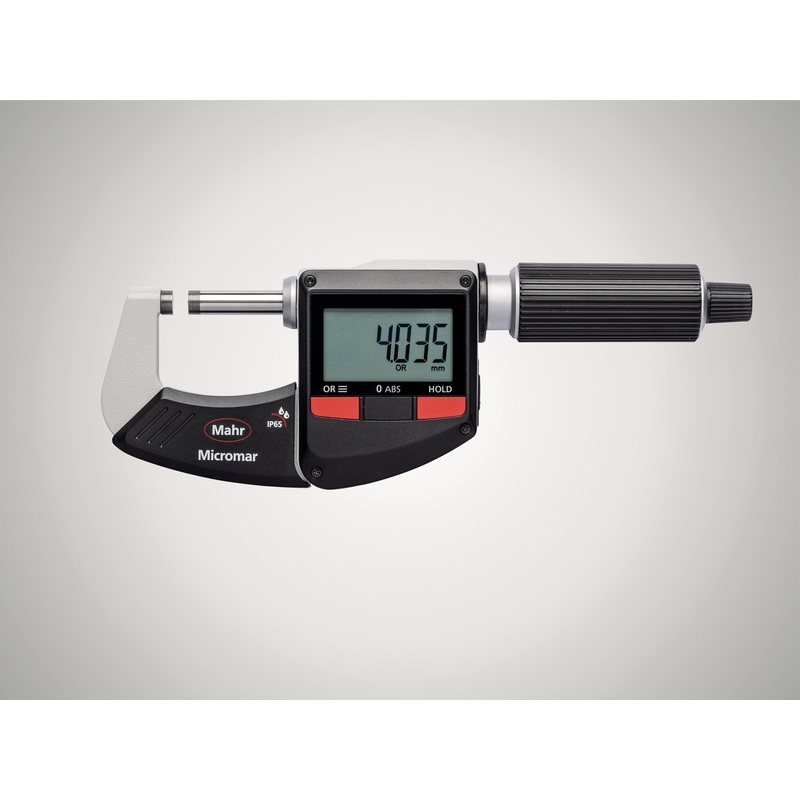

Mahr Micromar 40 EWR IP65 Micrometer: 0-25mm, 25-50mm

Description

• High contrast digit display
• Stainless spindle is hardened throughout and ground
• Spindle and anvil are carbide-tipped
• Rapid drive
• Ratchet is integrated in the thimble
• Lacquered steel frame, heat insulated

0-25mm/0-1″:

Standard Factory standard Measuring range mm 0 – 25 Measuring range inch 0 – 1″ Material Contact surface carbide Resolution mm/inch 0.001 / .00005″ Error limit m 2m Battery type CR 2032 (3V Lithium) Spindle diameter 6.5mm Spindle thread pitch_mm 0.5mm Measuring force (N) 5 – 10 Dimensions a 24 mm | b 9.5 mm | c 32 mm |

25-50mm/2-3″:

Standard Factory standard Measuring range mm 25 – 50 Measuring range inch 1 – 2″ Material Contact surface carbide Resolution mm/inch 0.001 / .00005″ Error limit m 2m Battery type CR 2032 (3V Lithium) Spindle diameter 6.5mm Spindle thread pitch_mm 0.5mm Measuring force (N) 5 – 10 Dimensions a 36 mm | b 11 mm | c 57 mm |
