Mahr MarTest 800 SGL Dial Test Indicator | Range 0.25 mm | Graduation 0.01mm

Description

• Test indicator MarTest 800 SGL
• Factory standard
• Measuring range mm: 0.25 mm
• Graduation value mm: 0.01
• Package contains: case, instruction manual, spanner for changing the styli, stylus dia. 2 mm, mounting shaft 800a

• High contrast dial face,sealed with an O-Ring
• Mineral glass viewing panelfor best protection:
  – against scratching or damage caused by hot shavings
  – optimal resistance to solvents
• Matt chrome-plated protective casing with three integrated dovetail guide rails
• Shockproof measuring mechanism
• Anti-magnetic model
• Automatic adjustment to the contacting direction ensuring infallible readings
• Ball-bearing mounted double lever
• Overload protection thanks to friction clutch

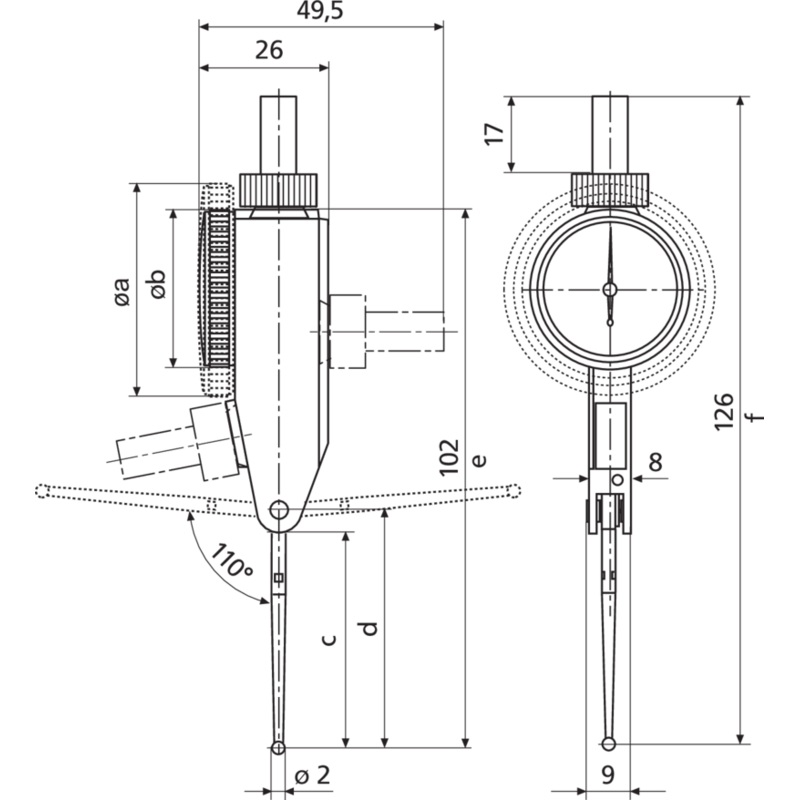

Measuring range mm 0.25 Product type 800 SGL Graduation value mm 0.01 Standard Factory standard Figur on dial face 25-0-25 Range per rev. in mm 0.5mm Span of error fe (m) 10m Total span of error fges (m) 13m Measuring value hysteresis fu (m) 5m Partial measuring range ft (m) 5m Repeatability fw (m) 3m Measuring force 0.07N Scale diameter 38mm Dial color Yellow Dimensions a 40.5 mm | c 40.3 mm | d 44.6 mm | e 102 mm | f 126 mm
