Mahr MarTest 800 S Dial Test Indicator | Range 0.4 mm | Graduation 0.01mm | DIN 2270

Description

• Test indicator MarTest 800 S
• DIN 2270
• Measuring range mm: 0.4 mm
• Graduation value mm: 0.01
• Package contains: case, instruction manual, spanner for changing the styli, stylus dia. 2 mm, mounting shaft 800a

• High contrast dial face,sealed with an O-Ring
• Mineral glass viewing panelfor best protection:
  – against scratching or damage caused by hot shavings
  – optimal resistance to solvents
• Matt chrome-plated protective casing with three integrated dovetail guide rails
• Shockproof measuring mechanism
• Anti-magnetic model
• Automatic adjustment to the contacting direction ensuring infallible readings
• Ball-bearing mounted double lever
• Overload protection thanks to friction clutch

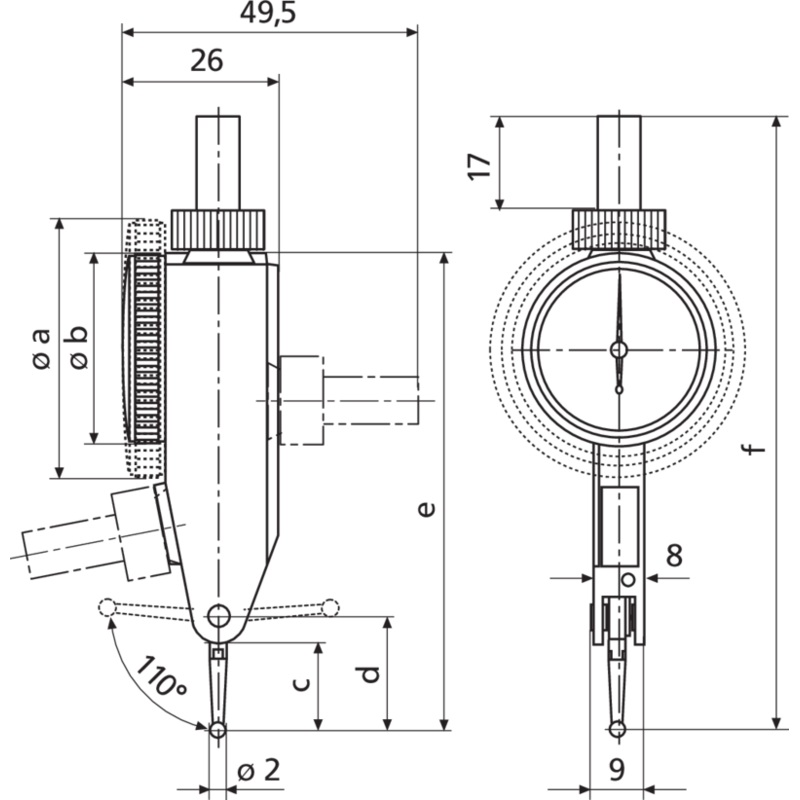

Measuring range mm 0.4 Product type 800 S Graduation value mm 0.01 Standard DIN 2270 Figur on dial face 40-0-40 Range per rev. in mm 0.8mm Span of error fe (m) 10m Total span of error fges (m) 13m Measuring value hysteresis fu (m) 3m Partial measuring range ft (m) 5m Repeatability fw (m) 3m Measuring force 0.15N Scale diameter 27.5mm Dial color Yellow Dimensions b 30 mm | c 13.6 mm | d 17.8 mm | e 75 mm | f 99 mm
