Description

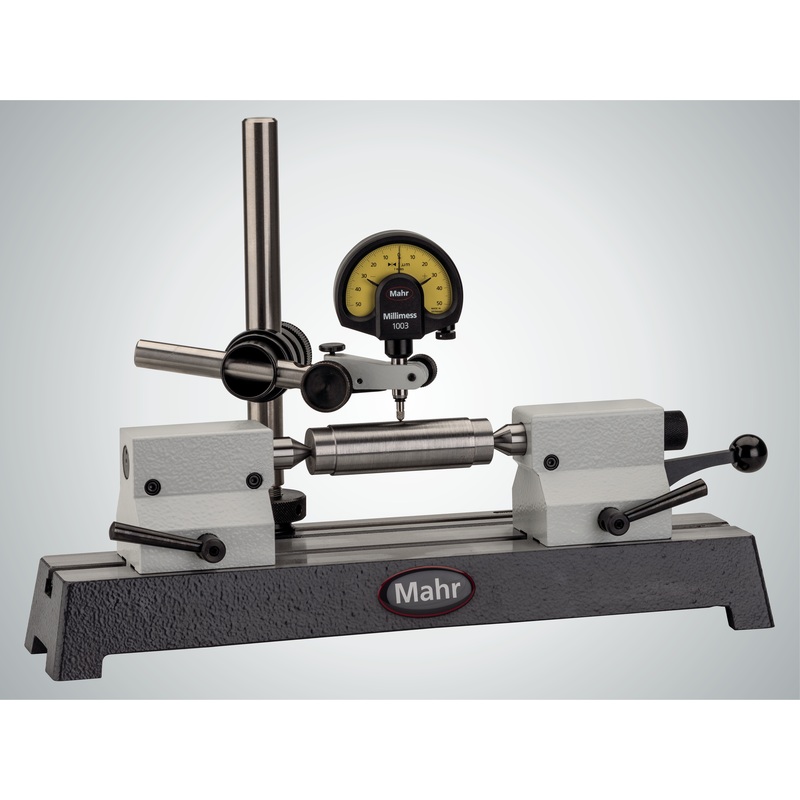

- Radial run-out gage with center supports MarStand 818

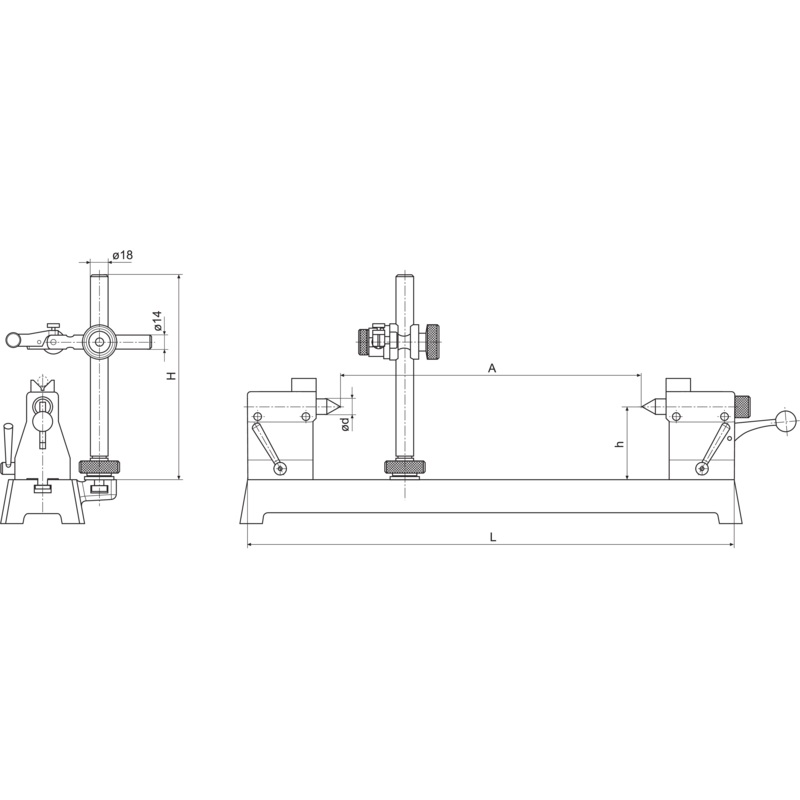

- Distance between centers: 0 – 350 mm
- Height of centers: 75 mm
- Package contains: measuring bench, measuring arm 818 XNB, center supports, excludes indicator
Measuring bench:
- Flatness of support surface as per DIN 876-2
- With two T-grooves to hold center supports and post and support assembly
Post and support assembly 818 XNB:
- Support arm fitted with joint
- Holder with display device with 8 mm shaft diameter and fine adjustment
Center supports:
- Both center supports are adjustable
- Right center support includes retractable clamping tip
- Left center support has fixed counter-tip
- Center supports with peak height of 75 mm and 90 V-blocks for workpieces without center bore (for outer diameter up to 20 mm)
