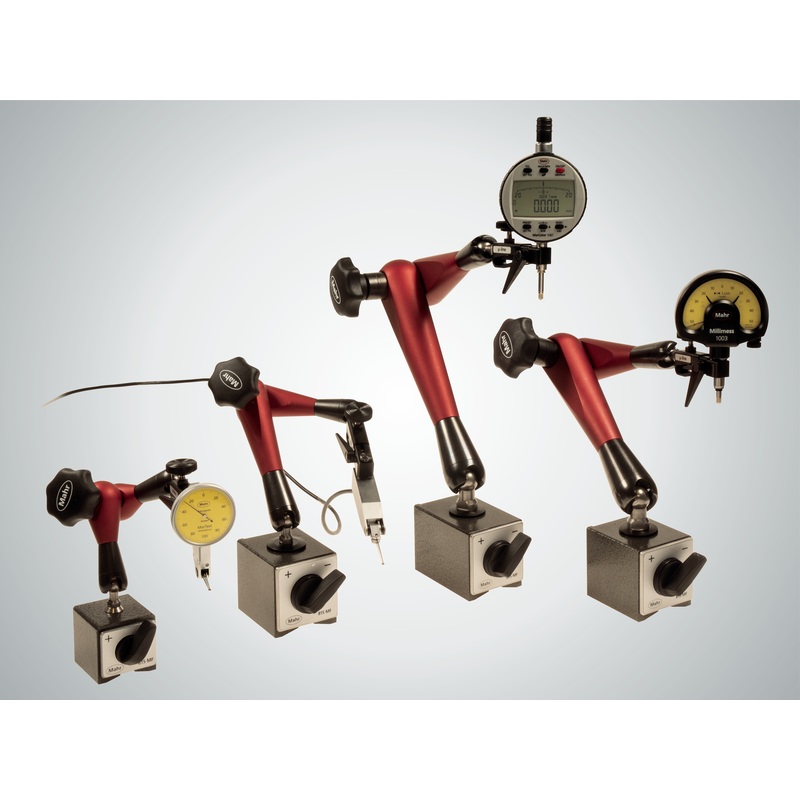

Mahr MarStand 815 MF Measuring tripod with magnetic base

Description

Please select size above:

• 3D jointed arm, can reach any position within the operating range
• Easy positioning of all three joints with a securely fixed handle
• Very sturdy component, for excellent stability and accuracy
• Maintenance-free mechanical clamping system
• Black anodized arm components made from high-quality light alloy
• Dial indicator holder with 8 mm mounting bore and dovetail for dial test indicator measuring devices
• Fitted with zero-play micro-precision adjuster
• Very easy to adjust, excellent repeatability
• Ideal for measuring instruments with ?m resolution
• Very powerful switching magnet

4420388:

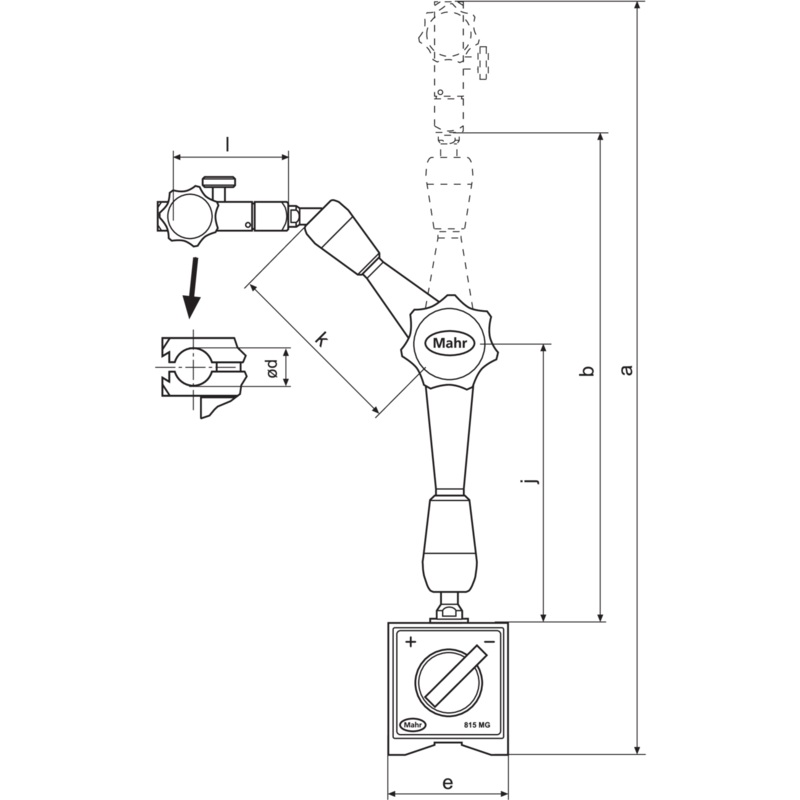

Fine adjustment range mm 2mm Base surface 73 x 50 x 55 mm V-block for shaft diameter 6 – 120 Adhesive force prism 1000N Total height 444mm Projection (max.) 330mm Mounting hole 8H7 Dimensions a 444 mm | b 330 mm | d 8 mm | j 201 mm | k 129 mm | l 49 mm |

4420387:

Fine adjustment range mm 2mm Base surface 60 x 50 x 55 mm V-block for shaft diameter 6 – 120 Adhesive force prism 800N Total height 399mm Projection (max.) 287mm Mounting hole 8H7 Dimensions a 399 mm | b 287 mm | d 8 mm | j 172 mm | k 115 mm | l 49 mm |

4420386:

Fine adjustment range mm 2mm Base surface 60 x 50 x 55 mm V-block for shaft diameter 6 – 120 Adhesive force prism 800N Total height 317mm Projection (max.) 204mm Mounting hole 8H7 Dimensions a 317 mm | b 204 mm | d 8 mm | j 116 mm | k 88 mm | l 49 mm |

4420385:

Fine adjustment range mm 2mm Base surface 40 x 40 x 40 mm V-block for shaft diameter 6 – 120 Adhesive force prism 300N Total height 228mm Projection (max.) 130mm Mounting hole 8H7 Dimensions

a 228 mm | b 130 mm | d 8 mm | j 71 mm | k 59 mm | l 49 mm |
